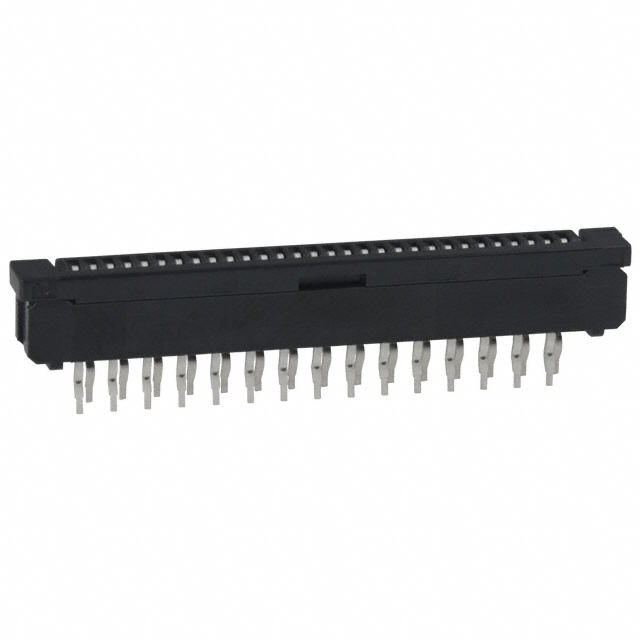

SLW30S-1C7LF

Obsolete

Amphenol ICC (FCI)

CONN FFC FPC VERT 30POS 1MM PCB

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN FFC FPC VERT 30POS 1MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	SLW30S-1C7LF

Actuator Material	Glass Filled, Polyamide (PA), Nylon
Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Tin
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.33 mm
Flat Flex Type	FPC, FFC
Height Above Board	5.5 mm
Height Above Board	0.217 in
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Through Hole
Number of Positions	30
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Kinked Pin
Voltage Rating	100 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Number of Positions	Mounting Type	Pitch [x]	Pitch [x]	Material Flammability Rating	Housing Color	Actuator Material	Connector/Contact Type	Termination	Housing Material	FFC, FCB Thickness	Contact Finish	Contact Material	Flat Flex Type	Height Above Board	Height Above Board	Voltage Rating	Locking Feature
Amphenol ICC (FCI) SLW30S-1C7LF	85 °C	-55 °C	20	30	Through Hole	0.039 in	1 mm	UL94 V-0	Black	Glass Filled Nylon Polyamide (PA)	Contacts Vertical - 1 Sided	Kinked Pin	Polyamide (PA) Nylon Glass Filled	0.33 mm	Tin	Phosphor Bronze	FFC FPC	5.5 mm	0.217 in	100 V	Slide Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

30 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Through Hole
