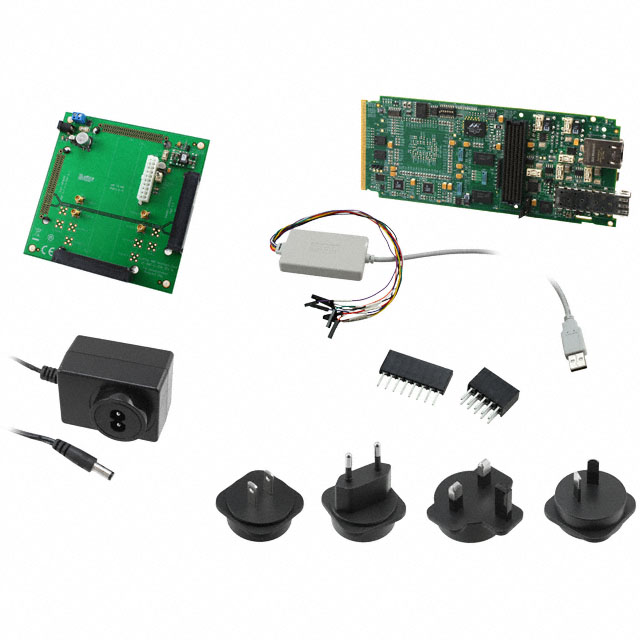

LFE3-150EA-AMC-EVN

Obsolete

LATTICE SEMICONDUCTOR

BOARD EVAL LFE-150

Search across all available documentation for this part.

Obsolete

LATTICE SEMICONDUCTOR

BOARD EVAL LFE-150

Technical Specifications

Parameters and characteristics for this part

Specification	LFE3-150EA-AMC-EVN

Contents	Board(s)
For Use With/Related Products	LFE3-150
Platform	ECP3 FPGA
Utilized IC / Part	LFE3-150

Part	Number of LABs/CLBs	Package / Case	Mounting Type	Number of I/O	Number of Logic Elements/Cells	Operating Temperature [Min]	Operating Temperature [Max]	Total RAM Bits	Supplier Device Package	Contents	Utilized IC / Part	For Use With/Related Products	Platform	Accessory Type
LATTICE SEMICONDUCTOR LFE3-150EA-9FN672C	18625	672-BBGA	Surface Mount	380	149000	0 °C	85 °C	7014400	672-FPBGA (27x27)
LATTICE SEMICONDUCTOR LFE3-150EA-AMC-EVN										Board(s)	LFE3-150	LFE3-150	ECP3 FPGA
LATTICE SEMICONDUCTOR LFE3-150EA-6LFN672C	18625	672-BBGA	Surface Mount	380	149000	0 °C	85 °C	7014400	672-FPBGA (27x27)
LATTICE SEMICONDUCTOR LFE3-150EA-8LFN672C	18625	672-BBGA	Surface Mount	380	149000	0 °C	85 °C	7014400	672-FPBGA (27x27)
LATTICE SEMICONDUCTOR LFE3-150EA-7LFN672I	18625	672-BBGA	Surface Mount	380	149000	-40 C	100 °C	7014400	672-FPBGA (27x27)
LATTICE SEMICONDUCTOR LFE3-150EA-8LFN672I	18625	672-BBGA	Surface Mount	380	149000	-40 C	100 °C	7014400	672-FPBGA (27x27)
LATTICE SEMICONDUCTOR LFE3-150EA-7FN672I	18625	672-BBGA	Surface Mount	380	149000	-40 C	100 °C	7014400	672-FPBGA (27x27)
LATTICE SEMICONDUCTOR LFE3-150EA-6FN1156C	18625	1156-BBGA	Surface Mount	586	149000	0 °C	85 °C	7014400	1156-FPBGA (35x35)
LATTICE SEMICONDUCTOR LFE3-ADC-DAC-EVN												LFE3-150		Interface Board
LATTICE SEMICONDUCTOR LFE3-150EA-9FN1156I	18625	1156-BBGA	Surface Mount	586	149000	-40 C	100 °C	7014400	1156-FPBGA (35x35)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ECP3 FPGA LFE3-150 ECP3 FPGA Evaluation Board
