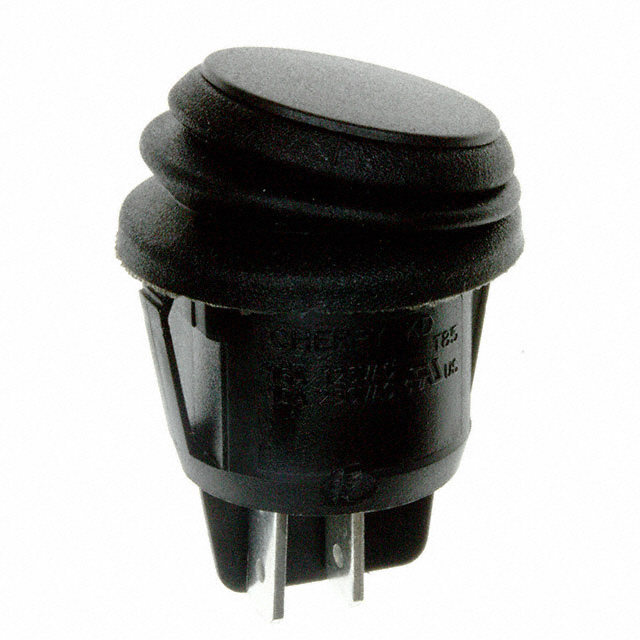

KDH3ANA1BBB

Active

ZF Electronics

SWITCH ROCKER DPST 16A 125V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH ROCKER DPST 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	KDH3ANA1BBB

Actuator Marking	No Marking
Actuator Type	Round
Circuit	DPST
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A, 10 A
Electrical Life	6000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Voltage Rating - DC	Ingress Protection	Switch Function	Actuator Type	Mounting Type	Voltage Rating - AC	Current Rating (Amps)	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Electrical Life	Circuit	Color - Actuator/Cap	Mechanical Life
ZF Electronics KDH3ANA1BBB	28 V	IP65 - Dust Tight Water Resistant	On-Off	Round	Panel Mount Snap-In	125 V	10 A 16 A	Quick Connect - 0.187" (4.7mm)	-25 °C	85 °C	No Marking	6000 Cycles	DPST	Black	100000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPST 16A (AC), 10A (DC) 125 V Panel Mount, Snap-In
