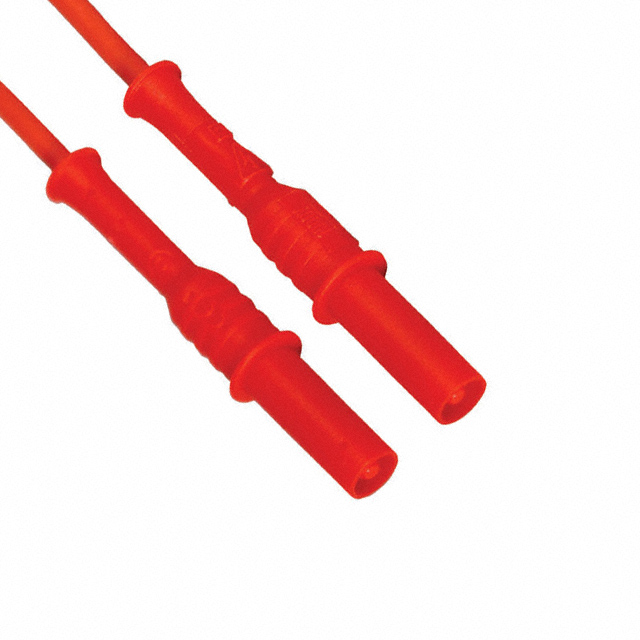

CT2162-10-2

Active

Cal Test Electronics

TEST LEAD BANANA TO BANANA 4"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CT2162-10-2

Active

Cal Test Electronics

TEST LEAD BANANA TO BANANA 4"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CT2162-10-2

1st Connector	Sheathed, Single, Banana Plug
2nd Connector	Banana Plug, Single, Sheathed
Cable Length [x]	4 in
Cable Length [x]	101.6 mm
Configuration	Banana to Banana
Contents	Red
Contents [custom]	1
Current Rating (Amps)	12 A
Material - Insulation	Silicone
Ratings	CAT IV 1000V
Stacking Method	Non Stackable
Type	Patch Cord
Voltage - Rated	1 kV
Voltage - Rated	1000 V
Wire Gauge	18 AWG

CT2162 Series

Part	Voltage - Rated	Voltage - Rated	Wire Gauge	Cable Length [x]	Cable Length [x]	Type	Material - Insulation	Stacking Method	Ratings	1st Connector	Contents [custom]	Contents	2nd Connector	Configuration	Current Rating (Amps)	Cable Length	Cable Length
Cal Test Electronics CT2162-10-2	1 kV	1000 V	18 AWG	4 in	101.6 mm	Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug Sheathed Single	1	Red	Banana Plug Single Sheathed	Banana to Banana	12 A
Cal Test Electronics CT2162-200-2	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug Sheathed Single	1	Red	Banana Plug Single Sheathed	Banana to Banana	12 A	78.7 in	2 m
Cal Test Electronics CT2162-100-4	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug Sheathed Single		1 Lead Yellow	Banana Plug Single Sheathed	Banana to Banana	12 A	39.4 in	100 cm
Cal Test Electronics CT2162-50-5	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug Sheathed Single			Banana Plug Single Sheathed	Banana to Banana	12 A	19.7 in	50 cm
Cal Test Electronics CT2162-50-9	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug Sheathed Single		1 Lead White	Banana Plug Single Sheathed	Banana to Banana	12 A	19.7 in	50 cm
Cal Test Electronics CT2162-10-4	1 kV	1000 V	18 AWG	4 in	101.6 mm	Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug Sheathed Single		1 Lead Yellow	Banana Plug Single Sheathed	Banana to Banana	12 A
Cal Test Electronics CT2162-200-5	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug Sheathed Single			Banana Plug Single Sheathed	Banana to Banana	12 A	78.7 in	2 m
Cal Test Electronics CT2162-25-5	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug Sheathed Single			Banana Plug Single Sheathed	Banana to Banana	12 A	9.8 in	250 mm
Cal Test Electronics CT2162-100-6	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug Sheathed Single		1 Lead Blue	Banana Plug Single Sheathed	Banana to Banana	12 A	39.4 in	100 cm
Cal Test Electronics CT2162-150-0	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug Sheathed Single		1 Lead Black	Banana Plug Single Sheathed	Banana to Banana	12 A	59.1 in	1.5 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 9.15

Description

General part information

CT2162 Series

4.0" (101.60mm) Banana Plug, Single, Sheathed To Banana Plug, Single, Sheathed Patch Cord 1000V (1kV)
