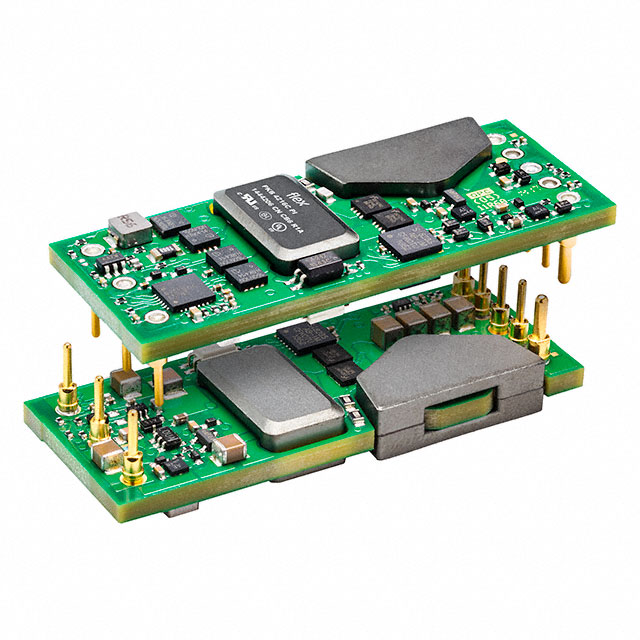

PKB4216CSI

Active

Flex Power Modules

DC DC CONVERTER 30V 200W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PKB4216CSI

Active

Flex Power Modules

DC DC CONVERTER 30V 200W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PKB4216CSI

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	6.7 A
Efficiency	95.1 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Eighth Brick
Power (Watts)	200 W
Size / Dimension [x]	2.3 in
Size / Dimension [x]	58.4 mm
Size / Dimension [y]	0.89 in
Size / Dimension [y]	22.7 mm
Size / Dimension [z]	0.34 in
Size / Dimension [z]	8.6 mm
Standard Number	62368-1
Supplier Device Package	Eighth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	30 V

PKB421 Series

Part	Voltage - Input (Min) [Min]	Mounting Type	Features	Applications	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Number of Outputs	Standard Number	Control Features	Type	Current - Output (Max) [Max]	Supplier Device Package	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Package / Case	Power (Watts)	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]
Flex Power Modules PKB4216CSI	36 V	Surface Mount	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	95.1 %	0.34 in	0.89 in	2.3 in	22.7 mm	58.4 mm	8.6 mm	30 V	1	62368-1	Active Low Enable	Isolated Module	6.7 A	Eighth Brick	75 V	125 °C	-40 °C	CB CSA IEC TUV UL	Eighth Brick	200 W	1.5 kV
Flex Power Modules PKB4217MPI	38 V	Through Hole	Remote On/Off	ITE (Commercial)	95.5 %	0.4 "	0.89 in	2.3 in		58.4 mm		11.4 V	1	62368-1	Active Low Enable	Isolated Module	21 A	Eighth Brick	75 V	90 °C	-30 °C	CB CSA IEC TUV UL	Eighth Brick	239 W	1.5 kV	10.1 mm	22.7 mm
Flex Power Modules PKB4216HDPIHS	36 V	Through Hole	Adjustable Output Baseplate Remote On/Off	ITE (Commercial)	94.5 %	0.52 "	0.89 in	2.3 in	22.7 mm	58.4 mm	13.2 mm	50 V	1	62368-1	Active Low Enable	Isolated Module	5 A	Eighth Brick	60 V	125 °C	-40 °C	CB CSA IEC TUV UL	Eighth Brick	250 W	2250 VDC
Flex Power Modules PKB4213DPI	36 V	Through Hole	Adjustable Output Remote On/Off	ITE (Commercial)	95.4 %	0.38 in	0.89 in	2.3 in	22.7 mm	58.4 mm	9.6 mm	12 V	1	62368-1	Active Low Enable	Isolated Module	22 A	Eighth Brick	75 V	125 °C	-40 °C	CB CSA IEC TUV UL	Eighth Brick	264 W	2250 VDC
Flex Power Modules PKB4216CPIHV	36 V	Through Hole	Adjustable Output Baseplate Remote On/Off Remote Sense	ITE (Commercial)	95.1 %							30 V	1	62368-1	Active Low Enable	Isolated Module	6.7 A	Eighth Brick	75 V	125 °C	-40 °C	CB CSA IEC TUV UL	Eighth Brick	200 W	1.5 kV
Flex Power Modules PKB4211DPI	36 V	Through Hole	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	95.3 %	0.38 in	0.89 in	2.3 in	22.7 mm	58.4 mm	9.6 mm	5 V	1	62368-1	Active Low Enable	Isolated Module	40 A	Eighth Brick	75 V	125 °C	-40 °C	CB CSA IEC TUV UL	Eighth Brick	200 W	2250 VDC
Flex Power Modules PKB4216CPIHVG	36 V	Through Hole	Adjustable Output Baseplate Remote On/Off Remote Sense	ITE (Commercial)	95.1 %							30 V	1	62368-1	Active Low Enable	Isolated Module	6.7 A	Eighth Brick	75 V	125 °C	-40 °C	CB CSA IEC TUV UL	Eighth Brick	200 W	1.5 kV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 46.82
		5	$ 46.45
		20	$ 46.08
		40	$ 42.43
		80	$ 39.50
		240	$ 38.92

Description

General part information

PKB421 Series

Isolated Module DC DC Converter 1 Output 30V 6.7A 36V - 75V Input
