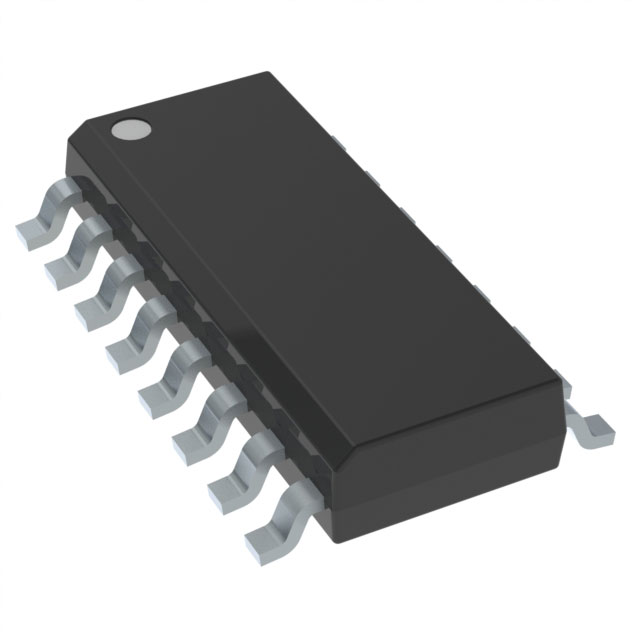

PI49FCT3804ASE
ObsoleteDiodes Inc
IC CLK BUFFER 1:4 16SOIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PI49FCT3804ASE
ObsoleteDiodes Inc
IC CLK BUFFER 1:4 16SOIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PI49FCT3804ASE |
|---|---|
| Differential - Input:Output | False |
| Input | CMOS, TTL |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | TTL |
| Package / Case | 16-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Ratio - Input:Output | 1:4 |
| Supplier Device Package | 16-SOIC |
| Type | Fanout Buffer (Distribution) |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
49FCT3804 Series
Clock Fanout Buffer (Distribution) IC 1:4 16-SOIC (0.154", 3.90mm Width)
Documents
Technical documentation and resources
