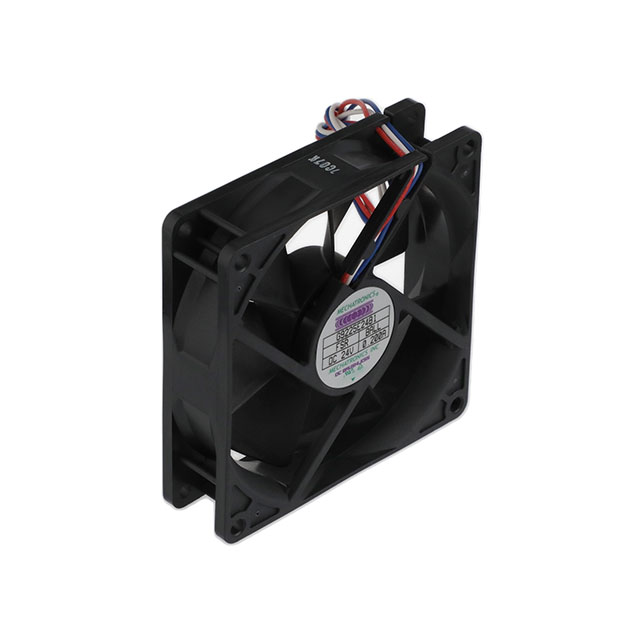

G9225E24B1-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 92X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DC Lead Wire Specs

G9225E24B1-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 92X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet DC Lead Wire Specs

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G9225E24B1-FSR

Air Flow	1.62 mł/min
Air Flow	58 CFM
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.2 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Thermal Overload Protector (TOP)
Noise	39 dB(A)
RPM	3200 RPM
Static Pressure	0.21 in H2O
Static Pressure	52.3 Pa
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Weight	0.218 lb
Weight	98.88 g
Width [y]	25 mm

G9225 Series

Part	Voltage - Rated	Fan Type	Static Pressure	Static Pressure	Noise	Air Flow	Air Flow	Current Rating (Amps)	Bearing Type	Approval Agency	Weight	Weight	Features	Width [y]	RPM	Termination	Air Flow	Ingress Protection
Mechatronics Bearing Group G9225E24B1-FSR	24 VDC	Tubeaxial	0.21 in H2O	52.3 Pa	39 dB(A)	1.62 mł/min	58 CFM	0.2 A	Ball	CE cUL TUV UL	0.218 lb	98.88 g	Speed Sensor (Tach) Thermal Overload Protector (TOP)	25 mm	3200 RPM	3 Wire Leads
Mechatronics Bearing Group G9225H12B6-FSR-EM	12 VDC	Tubeaxial			36 dB	50 CFM		0.28 A	Ball	CE cUL TUV UL	0.218 lb	98.88 g	PWM Control Thermal Overload Protector (TOP)	25 mm	2800 RPM	3 Wire Leads	1.4 m³/min	IP57 - Dust Protected Waterproof
Mechatronics Bearing Group G9225E12B-FSR-EM	12 VDC	Tubeaxial	0.21 in H2O	52.3 Pa	39 dB(A)	1.62 mł/min	58 CFM	370 mA	Ball	CE cUL TUV UL	0.218 lb	98.88 g	Thermal Overload Protector (TOP)	25 mm	3200 RPM	2 Wire Leads		IP57 - Dust Protected Waterproof
Mechatronics Bearing Group G9225E12B-FSR	12 VDC	Tubeaxial	0.21 in H2O	52.3 Pa	39 dB(A)	1.62 mł/min	58 CFM	370 mA	Ball	CE cUL TUV UL	0.218 lb	98.88 g	Thermal Overload Protector (TOP)	25 mm	3200 RPM	2 Wire Leads
Mechatronics Bearing Group G9225E12B2-FSR-EM	12 VDC	Tubeaxial	0.21 in H2O	52.3 Pa	39 dB(A)	1.62 mł/min	58 CFM	370 mA	Ball	CE cUL TUV UL	0.218 lb	98.88 g	Locked Rotor Sensor Thermal Overload Protector (TOP)	25 mm	3200 RPM	3 Wire Leads		IP57 - Dust Protected Waterproof
Mechatronics Bearing Group G9225E24B-FSR	24 VDC	Tubeaxial	0.21 in H2O	52.3 Pa	39 dB(A)	1.62 mł/min	58 CFM	0.2 A	Ball	CE cUL TUV UL	0.218 lb	98.88 g	Thermal Overload Protector (TOP)	25 mm	3200 RPM	2 Wire Leads
Mechatronics Bearing Group G9225M12B-FSR	12 VDC	Tubeaxial	0.12 in H2O	29.9 Pa	32 dB	1.18 m³/min	42 CFM	0.2 A	Ball	CE cUL TUV UL	0.218 lb	98.88 g	Thermal Overload Protector (TOP)	25 mm	2400 RPM	2 Wire Leads
Mechatronics Bearing Group G9225X12B1+6-FSR	12 VDC	Tubeaxial	0.24 in H2O	59.8 Pa	42 dB	1.85 m³/min	66 CFM	490 mA	Ball	CE cUL TUV UL	0.218 lb	98.88 g	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	25 mm	3600 RPM	4 Wire Leads
Mechatronics Bearing Group G9225M12B1-FSR	12 VDC	Tubeaxial	0.12 in H2O	29.9 Pa	32 dB	1.18 m³/min	42 CFM	0.2 A	Ball	CE cUL TUV UL	0.218 lb	98.88 g	Speed Sensor (Tach) Thermal Overload Protector (TOP)	25 mm	2400 RPM	3 Wire Leads
Mechatronics Bearing Group G9225E12B1-FSR	12 VDC	Tubeaxial	0.21 in H2O	52.3 Pa	39 dB(A)	1.62 mł/min	58 CFM	370 mA	Ball	CE cUL TUV UL	0.218 lb	98.88 g	Speed Sensor (Tach) Thermal Overload Protector (TOP)	25 mm	3200 RPM	3 Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.81
		10	$ 12.32
		25	$ 11.77
		50	$ 11.37
		100	$ 10.98
		250	$ 10.49
		500	$ 10.13

Description

General part information

G9225 Series

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 58.0 CFM (1.62m³/min) 3 Wire Leads
