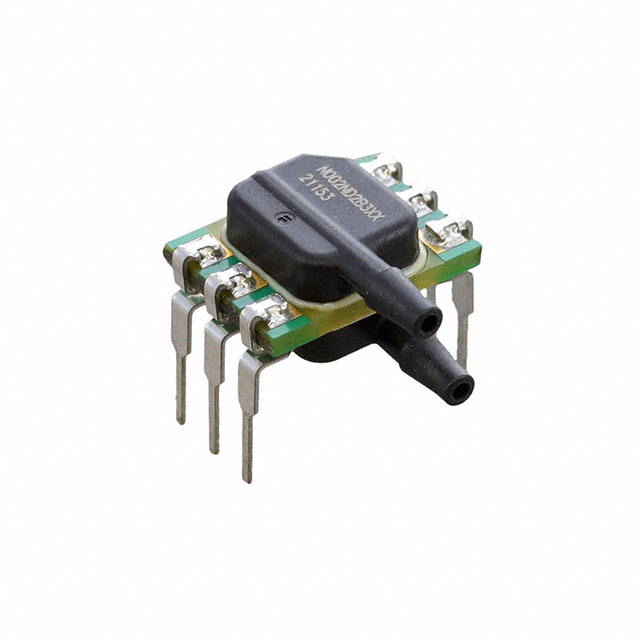

ABP2DRRN002ND2B3XX

Active

Honeywell Sensing and Productivity Solutions

SENSOR 14BIT 6DIP

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 14BIT 6DIP

Technical Specifications

Parameters and characteristics for this part

Specification	ABP2DRRN002ND2B3XX

Accuracy	0.25 %
Features	Temperature Compensated, Amplified Output
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Output	14 b
Output Type	I2C
Package / Case	6-DIP Module, Dual Ports, Same Side
Pressure Type	Vented Gauge
Supplier Device Package	6-DIP
Termination Style	PC Pin
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.8 V

Part	Output	Features	Accuracy	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Pressure Type	Mounting Type	Output Type	Package / Case	Termination Style
Honeywell Sensing and Productivity Solutions ABP2DRRN002ND2B3XX	14 b	Amplified Output Temperature Compensated	0.25 %	-40 °C	110 °C	3.6 V	1.8 V	6-DIP	Vented Gauge	Through Hole	I2C	6-DIP Module Dual Ports Same Side	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor Vented Gauge 14 b 6-DIP Module, Dual Ports, Same Side
