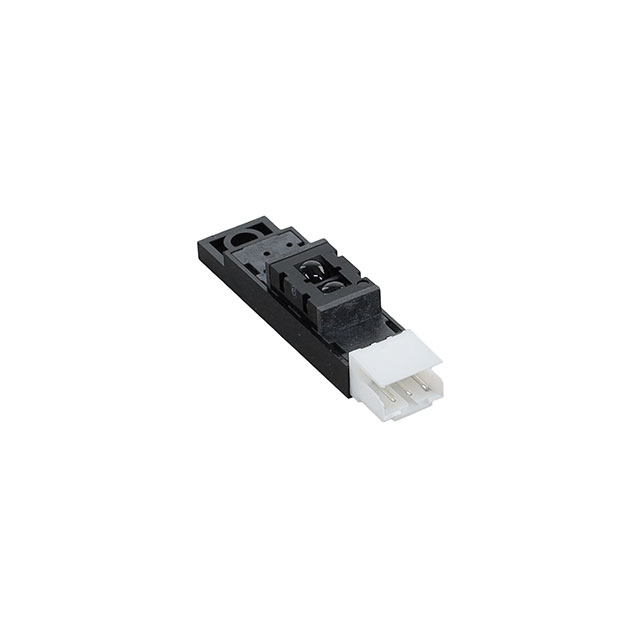

GP2A25J0000F
ActiveSHARP/Socle Technology
SENSOR OPT REFL 1MM-9MM MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GP2A25J0000F
ActiveSHARP/Socle Technology
SENSOR OPT REFL 1MM-9MM MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GP2A25J0000F |
|---|---|
| Features | Long Focal Distance |
| Mounting Type | Chassis Mount |
| Package / Case | Module, Connector |
| Sensing Distance | ADJ |
| Sensing Distance [Max] | 9 mm |
| Sensing Distance [Max] | 0.354 " |
| Sensing Distance [Min] | 1 mm |
| Sensing Distance [Min] | 0.039 " |
| Sensing Light | Infrared |
| Sensing Method | Reflective |
| Sensing Object | White Paper, Kodak® Gray Card, Black Paper |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.65 | |
| 5 | $ 5.07 | |||
| 10 | $ 5.32 | |||
| 25 | $ 4.92 | |||
| 50 | $ 4.43 | |||
| 100 | $ 4.26 | |||
| 500 | $ 3.99 | |||
| 1000 | $ 3.72 | |||
Description
General part information
GP2A25 Series
Reflective Optical Sensor 0.039" ~ 0.354" (1mm ~ 9mm) ADJ Black Paper, Kodak® Gray Card, White Paper Module, Connector
Documents
Technical documentation and resources
