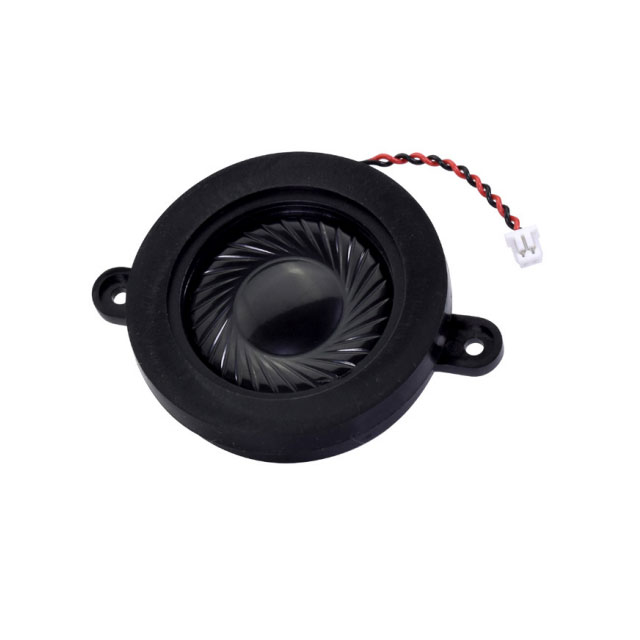

CES-3990-158PM-67
ActiveCUI Devices
SPEAKER 8OHM 1.5W TOP PORT 100DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CES-3990-158PM-67 |
|---|---|
| Distortion Rating [Max] | 10 % |
| Efficiency - dBA | 100 dBA |
| Efficiency - Testing | 1.5 W/10cm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 1.35 kHz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 1.08 kHz |
| Height - Seated (Max) [Max] | 0.354 in |
| Height - Seated (Max) [Max] | 9 mm |
| Impedance | 8 Ohms |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material - Cone | Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Port Location | Top |
| Power - Max [Max] | 2.5 W |
| Power - Rated | 1.5 W |
| Shape | Round |
| Size / Dimension [diameter] | 1.535 in |
| Size / Dimension [diameter] | 39 mm |
| Technology | Magnetic |
| Termination | Wire Leads with Connector |
| Type | Enclosure Included, General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.15 | |
| 10 | $ 4.25 | |||
| 25 | $ 3.91 | |||
| 50 | $ 3.67 | |||
| 100 | $ 3.44 | |||
| 250 | $ 3.24 | |||
| 450 | $ 3.05 | |||
Description
General part information
CES-3990 Series
8 Ohms General Purpose, Enclosure Included Speaker 1.5 W 1.08 kHz ~ 20 kHz Top Round
