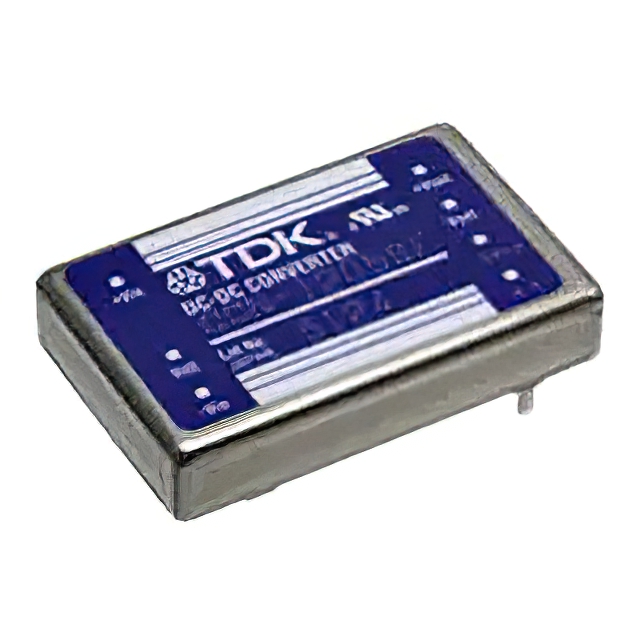

CCK-4812SF
ObsoleteEPCOS - TDK Electronics
DC DC CONVERTER 12V 1.5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CCK-4812SF
ObsoleteEPCOS - TDK Electronics
DC DC CONVERTER 12V 1.5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CCK-4812SF |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 125 mA |
| Efficiency | 75 % |
| Features | OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 1.5 W |
| Size / Dimension [x] | 1.1 " |
| Size / Dimension [x] | 27.9 mm |
| Size / Dimension [y] | 0.63 in |
| Size / Dimension [y] | 16 mm |
| Size / Dimension [z] | 7.9 mm |
| Size / Dimension [z] | 0.31 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 72 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CCK Series
Isolated Module DC DC Converter 1 Output 12V 125mA 36V - 72V Input
