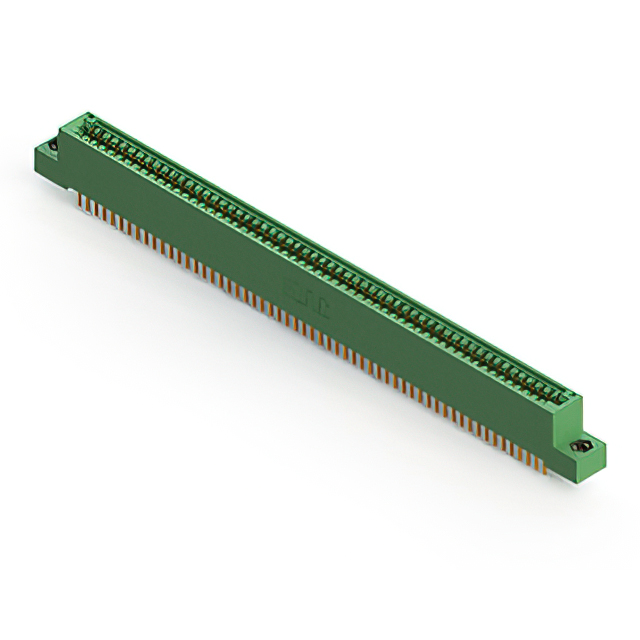

345-114-542-208

Active

EDAC Inc.

CONN EDGE DUAL FML 114POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

345-114-542-208

Active

EDAC Inc.

CONN EDGE DUAL FML 114POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-114-542-208

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	114
Number of Positions/Bay/Row [custom]	57
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

345-114 Series

...

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Mounting Type	Color	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Termination	Read Out	Contact Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Rows	Card Type	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Gender	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Features	Flange Feature	Flange Feature
EDAC Inc. 345-114-541-804	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Through Hole	Green	57	2.54 mm	0.1 in	Wire Wrap	Dual	Cantilever	0.156 in	Top Mount Opening Unthreaded	3.96 mm	2	Non Specified - Dual Edge	Copper Alloy	114	-40 °C	105 ░C	Gold	Female	2	10 Áin	0.25 Ám
EDAC Inc. 345-114-524-258	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Through Hole	Green	57	2.54 mm	0.1 in	Solder	Dual	Cantilever		4-40 Flush Mount Threaded Insert Top Opening		2	Non Specified - Dual Edge	Copper Alloy	114	-40 °C	105 ░C	Gold	Female	2	10 Áin	0.25 Ám	Card Guides
EDAC Inc. 345-114-558-558	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Through Hole Right Angle	Green	57	2.54 mm	0.1 in	Wire Wrap	Dual	Cantilever		4-40 Threaded Insert Top Mount Opening		2	Non Specified - Dual Edge	Copper Alloy	114	-40 °C	105 ░C	Gold	Female	2	10 Áin	0.25 Ám	Card Guides
EDAC Inc. 345-114-523-258	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Through Hole	Green	57	2.54 mm	0.1 in	Solder	Dual	Cantilever		4-40 Flush Mount Threaded Insert Top Opening		2	Non Specified - Dual Edge	Copper Alloy	114	-40 °C	105 ░C	Gold	Female	2	10 Áin	0.25 Ám	Card Guides
EDAC Inc. 345-114-559-212	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Through Hole Right Angle	Green	57	2.54 mm	0.1 in	Wire Wrap	Dual	Cantilever	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	2	Non Specified - Dual Edge	Copper Alloy	114	-40 °C	105 ░C	Gold	Female	2	10 Áin	0.25 Ám
EDAC Inc. 345-114-542-208	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Through Hole	Green	57	2.54 mm	0.1 in	Wire Wrap	Dual	Cantilever		4-40 Flush Mount Threaded Insert Top Opening		2	Non Specified - Dual Edge	Copper Alloy	114	-40 °C	105 ░C	Gold	Female	2	10 Áin	0.25 Ám
EDAC Inc. 345-114-540-807	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Through Hole	Green	57	2.54 mm	0.1 in	Wire Wrap	Dual	Cantilever		M3 Threaded Insert Top Mount Opening		2	Non Specified - Dual Edge	Copper Alloy	114	-40 °C	105 ░C	Gold	Female	2	10 Áin	0.25 Ám
EDAC Inc. 345-114-560-803	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Board Edge Straddle Mount	Green	57	2.54 mm	0.1 in	Solder	Dual	Cantilever	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	2	Non Specified - Dual Edge	Copper Alloy	114	-40 °C	105 ░C	Gold	Female	2	10 Áin	0.25 Ám	Card Extender
EDAC Inc. 345-114-520-807	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Through Hole	Green	57	2.54 mm	0.1 in	Solder	Dual	Cantilever		M3 Threaded Insert Top Mount Opening		2	Non Specified - Dual Edge	Copper Alloy	114	-40 °C	105 ░C	Gold	Female	2	10 Áin	0.25 Ám
EDAC Inc. 345-114-541-812	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Through Hole	Green	57	2.54 mm	0.1 in	Wire Wrap	Dual	Cantilever		Side Mount Opening Unthreaded		2	Non Specified - Dual Edge	Copper Alloy	114	-40 °C	105 ░C	Gold	Female	2	10 Áin	0.25 Ám		3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 17.21

Description

General part information

345-114 Series

114 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
