Technical Specifications
Parameters and characteristics for this part
| Specification | 10-2603.3175K |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Lens Style | Round with Domed Top |
| Millicandela Rating | 1600 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength - Dominant | 525 nm |
10-2603 Series
| Part | (Select First, Then Apply Filters) Compatible Series | (Select First, Then Apply Filters) Compatible Series | Voltage | Type | Color | Wavelength - Dominant | Current - Test | Voltage - Forward (Vf) (Typ) | Package / Case | Millicandela Rating | Lens Style | Mounting Type | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10 | EAO | 3.6 V | LED | Blue | |||||||||
10 | EAO | 3 V | LED | Blue | |||||||||
10 | EAO | 3 V | LED | White | |||||||||
10 | EAO | 3.2 V | LED | Green | |||||||||
10 | EAO | 3.2 V | LED | White | |||||||||
Green | 525 nm | 20 mA | 3.2 V | Radial | 1600 mcd | Round with Domed Top | Through Hole | Standard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
10-2603 Series

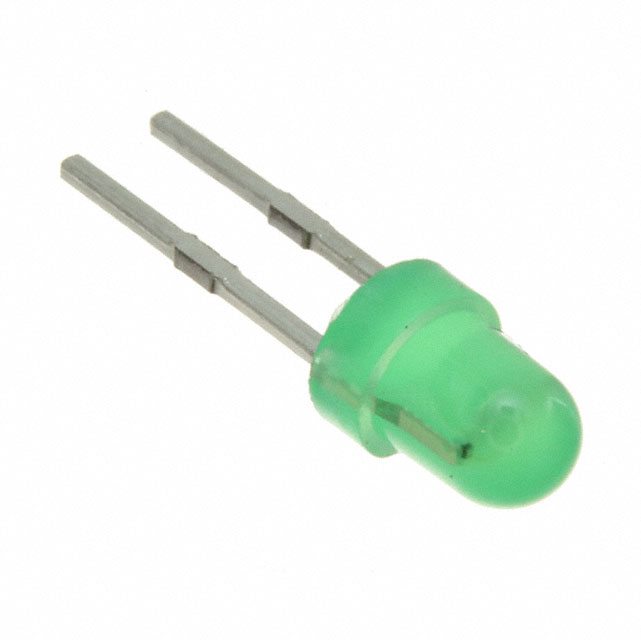

Green 525nm LED Indication - Discrete 3.2V Radial
