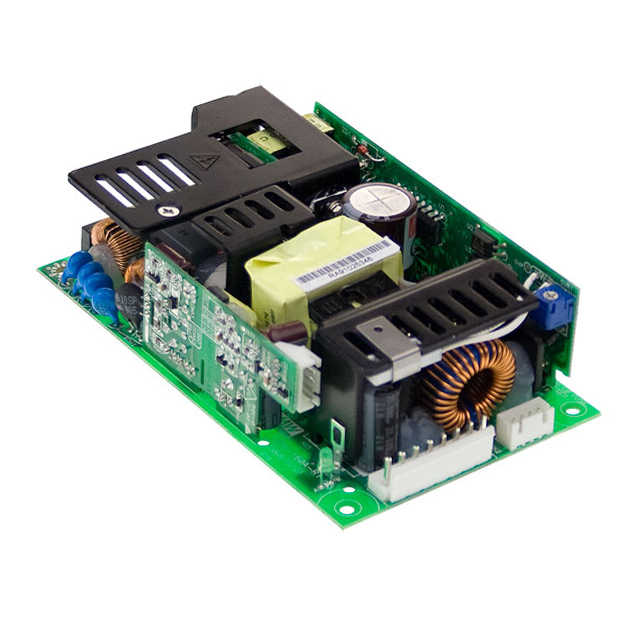

RPSG-160-5

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 100W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 100W

Technical Specifications

Parameters and characteristics for this part

Specification	RPSG-160-5

Applications	Household Appliances, Medical
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	20 A
Efficiency	86 %
Features	Standby Output, Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	150 W
Power (Watts)	100 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	34.6 mm
Size / Dimension [z]	1.36 "
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	5 V

Part	Number of Outputs	Power (Watts)	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	Efficiency	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Type	Approval Agency	Applications	Mounting Type	Voltage - Output 1	Power (Watts)
MEAN WELL USA Inc. RPSG-160-5	1	150 W	100 W	-20 °C	70 °C	34.6 mm	127 mm	3 "	76.2 mm	1.36 "	5 in	Adjustable Output Standby Output Universal Input	86 %	4000 V	90 VAC 127 VDC	264 VAC 370 VDC	20 A	Open Frame	CB CE cURus TUV	Household Appliances Medical	Chassis Mount	5 V
MEAN WELL USA Inc. RPSG-160-12	1		109 W 155 W	-20 °C	70 °C	34.6 mm	127 mm	3 "	76.2 mm	1.36 "	5 in	Adjustable Output Remote Sense Universal Input	87 %	4000 V	90 VAC 127 VDC	264 VAC 370 VDC	9.1 A	Open Frame	CB CE cURus TUV	Household Appliances Medical	Chassis Mount	12 V
MEAN WELL USA Inc. RPSG-160-48	1	156 W		-20 °C	70 °C	34.6 mm	127 mm	3 "	76.2 mm	1.36 "	5 in	Adjustable Output Universal Input	88 %	4000 V	90 VAC 127 VDC	264 VAC 370 VDC	2.3 A	Open Frame	CB CE cURus TUV	Household Appliances Medical	Chassis Mount	48 V	110 W
MEAN WELL USA Inc. RPSG-160-24	1	156 W		-20 °C	70 °C	34.6 mm	127 mm	3 "	76.2 mm	1.36 "	5 in	Adjustable Output Universal Input	87 %	4000 V	90 VAC 127 VDC	264 VAC 370 VDC	4.6 A	Open Frame	CB CE cURus TUV	Household Appliances Medical	Chassis Mount	24 V	110 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 5V 90 ~ 264 VAC, 127 ~ 370 VDC Input
