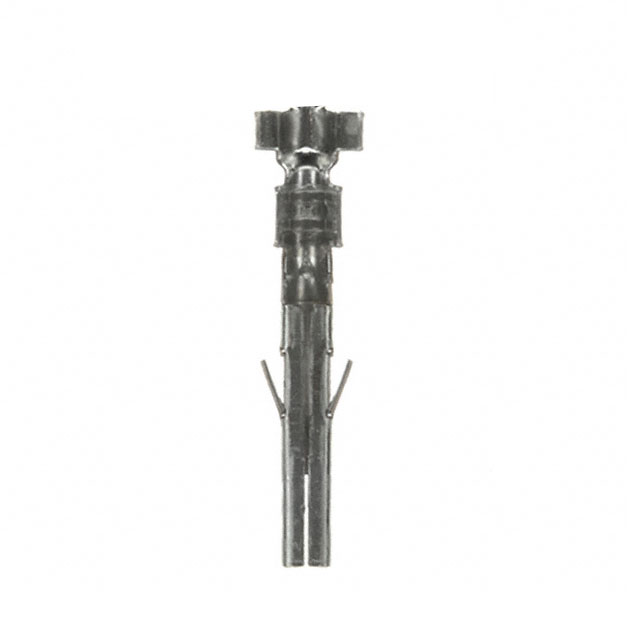

0039000079

Active

Molex

CONN SOCKET 16AWG CRIMP TIN

Search across all available documentation for this part.

Active

Molex

CONN SOCKET 16AWG CRIMP TIN

Technical Specifications

Parameters and characteristics for this part

...

Part	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Contact Finish	Pin or Socket	Type	Wire Gauge
Molex 0039000340	28 AWG	22 AWG	0.35 µm	13.8 µin	Crimp	Gold	Socket
Molex 0039000031	28 AWG	22 AWG	0.9 µm	35.4 µin	Crimp	Tin	Socket
Molex 0039000079					Crimp	Tin	Socket	Power	16 AWG
Molex 0039000062	24 AWG	17.5 AWG			Crimp	Tin	Pin	Power
Molex 0039000160	28 AWG	22 AWG			Crimp	Tin	Socket
Molex 0039000088	28 AWG	22 AWG	0.76 Ám	30 Áin	Crimp	Gold	Pin	Power
Molex 0039000029
Molex 0039000211			2.54 µm	100 µin	Crimp	Tin	Socket	Power	16 AWG
Molex 0039000087	28 AWG	22 AWG	0.76 Ám	30 Áin	Crimp	Gold	Pin	Power
Molex 0039000127	24 AWG	17.5 AWG	2.54 µm	100 µin	Crimp	Tin	Pin	Power

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact Tin 16 AWG Crimp Power

Technical documentation and resources
