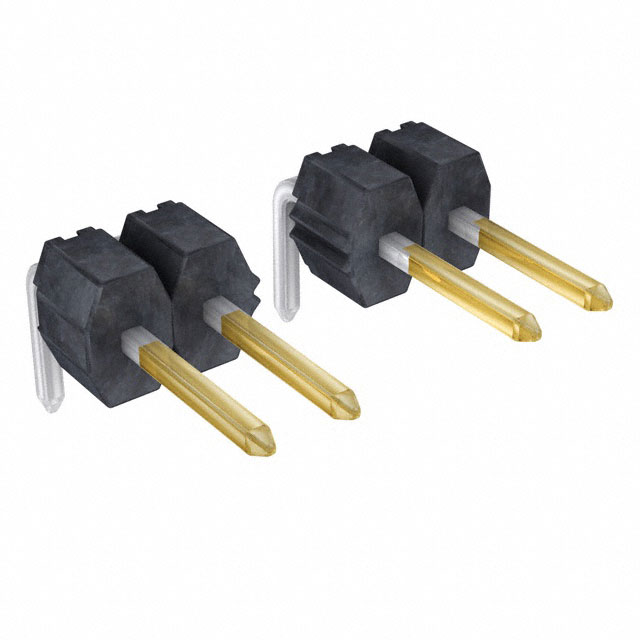

0901210765

Active

Molex

RIGHT-ANGLE TIN 5P 2.54MM BLACK BRASS SINGLE ROW PUSH-PULL,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0901210765

Active

Molex

RIGHT-ANGLE TIN 5P 2.54MM BLACK BRASS SINGLE ROW PUSH-PULL,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0901210765

Applications	Automotive, General Purpose
Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Mating	0.266 in
Contact Length - Mating	6.75 mm
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.6 mm
Insulation Height	0.142 in
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

90121 Series

2.54mm Pitch C-Grid III Header, Single Row, Right-Angle, 28 Circuits, Tin (Sn) Plating

Part	Contact Type	Style	Contact Shape	Insulation Material	Number of Rows	Applications	Shrouding	Contact Material	Insulation Color	Contact Finish - Post	Connector Type	Termination	Mounting Type	Contact Length - Mating	Contact Length - Mating	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Number of Positions	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish - Mating
Molex 0901210122	Male Pin	Board to Board Cable	Square	Polyester Glass Filled	1	Automotive General Purpose	Unshrouded	Brass	Black	Tin	Breakaway Header	Solder	Through Hole Right Angle	0.266 in	6.75 mm	Push-Pull	0.1 in	2.54 mm	3.6 mm	0.142 in	UL94 V-0	2	All	0.114 in	2.9 mm	118.1 µin	3 µm
Molex 0901210769	Male Pin	Board to Board Cable	Square	Polyester Glass Filled	1	Automotive General Purpose	Unshrouded	Brass	Black	Tin	Breakaway Header	Solder	Through Hole Right Angle	0.266 in	6.75 mm	Push-Pull	0.1 in	2.54 mm	3.6 mm	0.142 in	UL94 V-0	9	All	0.114 in	2.9 mm	0.38 µm		3 µm	118.1 µin	15 µin	Gold
Molex 0901210127	Male Pin	Board to Board Cable	Square	Polyester Glass Filled	1	Automotive General Purpose	Unshrouded	Brass	Black	Tin	Breakaway Header	Solder	Through Hole Right Angle	0.266 in	6.75 mm	Push-Pull	0.1 in	2.54 mm	3.6 mm	0.142 in	UL94 V-0	7	All	0.114 in	2.9 mm	118.1 µin	3 µm
Molex 0901210124	Male Pin	Board to Board Cable	Square	Polyester Glass Filled	1	Automotive General Purpose	Unshrouded	Brass	Black	Tin	Breakaway Header	Solder	Through Hole Right Angle	0.266 in	6.75 mm	Push-Pull	0.1 in	2.54 mm	3.6 mm	0.142 in	UL94 V-0	4	All	0.114 in	2.9 mm	118.1 µin	3 µm
Molex 0901210128	Male Pin	Board to Board Cable	Square	Polyester Glass Filled	1	Automotive General Purpose	Unshrouded	Brass	Black	Tin	Breakaway Header	Solder	Through Hole Right Angle	0.266 in	6.75 mm	Push-Pull	0.1 in	2.54 mm	3.6 mm	0.142 in	UL94 V-0	8	All	0.114 in	2.9 mm	118.1 µin	3 µm
Molex 0901210160	Male Pin	Board to Board Cable	Square	Polyester Glass Filled	1	Automotive General Purpose	Unshrouded	Brass	Black	Tin	Breakaway Header	Solder	Through Hole Right Angle	0.266 in	6.75 mm	Push-Pull	0.1 in	2.54 mm	3.6 mm	0.142 in	UL94 V-0	40	All	0.114 in	2.9 mm	118.1 µin	3 µm
Molex 0901210129	Male Pin	Board to Board Cable	Square	Polyester Glass Filled	1	Automotive General Purpose	Unshrouded	Brass	Black	Tin	Breakaway Header	Solder	Through Hole Right Angle	0.266 in	6.75 mm	Push-Pull	0.1 in	2.54 mm	3.6 mm	0.142 in	UL94 V-0	9	All	0.114 in	2.9 mm	118.1 µin	3 µm
Molex 0901210123	Male Pin	Board to Board Cable	Square	Polyester Glass Filled	1	Automotive General Purpose	Unshrouded	Brass	Black	Tin	Breakaway Header	Solder	Through Hole Right Angle	0.266 in	6.75 mm	Push-Pull	0.1 in	2.54 mm	3.6 mm	0.142 in	UL94 V-0		All	0.114 in	2.9 mm	118.1 µin	3 µm
Molex 0901210765	Male Pin	Board to Board Cable	Square	Polyester Glass Filled	1	Automotive General Purpose	Unshrouded	Brass	Black	Tin	Breakaway Header	Solder	Through Hole Right Angle	0.266 in	6.75 mm	Push-Pull	0.1 in	2.54 mm	3.6 mm	0.142 in	UL94 V-0		All	0.114 in	2.9 mm	0.38 µm		3 µm	118.1 µin	15 µin	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.87
		10	$ 0.65
		100	$ 0.51
		500	$ 0.48
LCSC	Piece	1	$ 0.38
		200	$ 0.15
		500	$ 0.15
		1000	$ 0.14

Description

General part information

90121 Series

2.54mm Pitch C-Grid III Header, Single Row, Right-Angle, 28 Circuits, Tin (Sn) Plating
