232003-06
ActiveQualtek

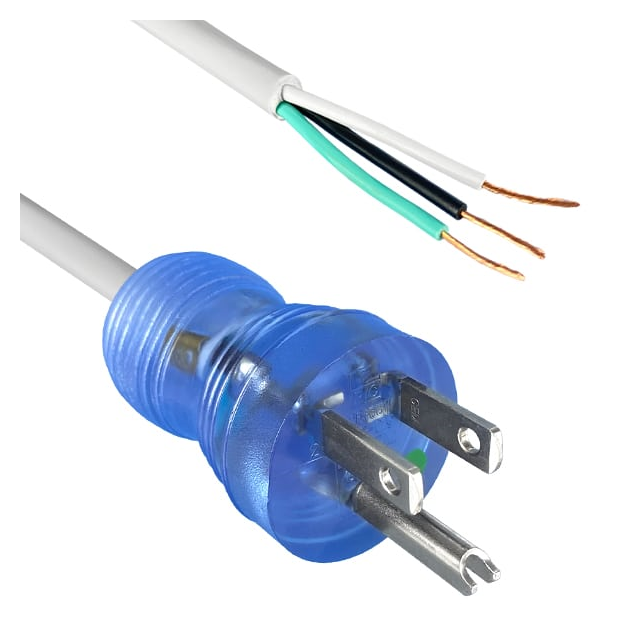

CORD 18AWG NEMA 5-15P TO CBL 10'
Deep-Dive with AI
Search across all available documentation for this part.
232003-06
ActiveQualtek
CORD 18AWG NEMA 5-15P TO CBL 10'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 232003-06 |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | Cable |
| Approval Agency Marking | CSA, UL |
| Approved Countries | United States, Canada |
| Color | Gray |
| Cord Type | SJT |
| Current Rating (Amps) | 10 A |
| Features | Hospital Grade |
| Length | 10 ft |
| Length | 3.05 m |
| Number of Conductors | 3 |
| Operating Temperature | 60 °C |
| Shielding | Unshielded |
| Style | Male Pins (Blades) to Leads |
| Voltage Rating | 125 VAC |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.69 | |
| 10 | $ 6.92 | |||
| 25 | $ 6.52 | |||
| 50 | $ 6.35 | |||
| 100 | $ 6.18 | |||
| 250 | $ 5.88 | |||
Description
General part information
232003 Series
10.00' (3.05m) Power Cord Gray NEMA 5-15P To Cable SJT
Documents
Technical documentation and resources
