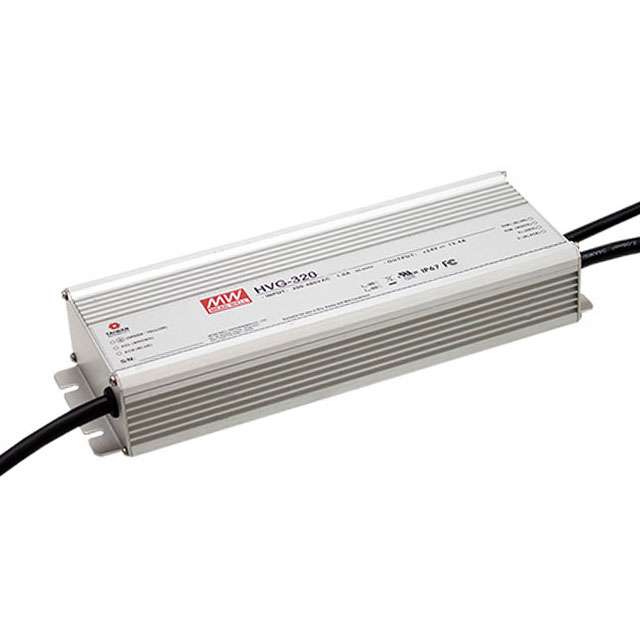

HVG-320-36AB

Active

MEAN WELL USA Inc.

I/P 180~528VAC O/P +36V8.9A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HVG-320-36AB

Active

MEAN WELL USA Inc.

I/P 180~528VAC O/P +36V8.9A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HVG-320-36AB

Approval Agency	FCC, cURus, EAC
Current - Output (Max) [Max]	8.9 A
Dimming	Analog, PWM
Efficiency	93.5 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	320 W
Ratings	IP65
Size / Dimension [x]	9.26 in
Size / Dimension [x]	235.2 mm
Size / Dimension [y]	90 mm
Size / Dimension [y]	3.54 in
Size / Dimension [z]	43.8 mm
Size / Dimension [z]	1.72 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max)	528 VAC
Voltage - Input (Min) [Min]	180 VAC
Voltage - Isolation	3750 V
Voltage - Output	36 V

HVG-320 Series

Part	Features	Voltage - Input (Max)	Mounting Type	Type	Ratings	Current - Output (Max) [Max]	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Topology	Number of Outputs	Voltage - Isolation	Efficiency	Voltage - Output [Max]	Voltage - Output [Min]	Dimming	Voltage - Output	Approval Agency
MEAN WELL USA Inc. HVG-320-24A	OCP OTP OVP SCP	528 VAC	Chassis Mount	Constant Current Voltage	IP65	13.4 A	Wire Leads	85 °C	-40 °C	180 VAC	9.26 in	43.8 mm	90 mm	235.2 mm	3.54 in	1.72 in	322 W	AC DC Converter	1	3750 V	92.5 %	26 V	21 V
MEAN WELL USA Inc. HVG-320-36AB	OCP OTP OVP SCP	528 VAC	Chassis Mount	Constant Current Voltage	IP65	8.9 A	Wire Leads	85 °C	-40 °C	180 VAC	9.26 in	43.8 mm	90 mm	235.2 mm	3.54 in	1.72 in	320 W	AC DC Converter	1	3750 V	93.5 %			Analog PWM	36 V	cURus EAC FCC
MEAN WELL USA Inc. HVG-320-24B	OCP OTP OVP SCP	528 VAC	Chassis Mount	Constant Current Voltage	IP67	13.4 A	Wire Leads	85 °C	-40 °C	180 VAC	9.26 in	43.8 mm	90 mm	235.2 mm	3.54 in	1.72 in	322 W	AC DC Converter	1	3750 V	92.5 %	24 V	12 V	Analog PWM
MEAN WELL USA Inc. HVG-320-54B	OCP OTP OVP SCP	528 VAC	Chassis Mount	Constant Current Voltage	IP67	6 A	Wire Leads	85 °C	-40 °C	180 VAC	9.26 in	43.8 mm	90 mm	235.2 mm	3.54 in	1.72 in	324 W	AC DC Converter	1	3750 V	94 %	54 V	27 V	Analog PWM
MEAN WELL USA Inc. HVG-320-30A	OCP OTP OVP SCP	528 VAC	Chassis Mount	Constant Current Voltage	IP65	10.7 A	Wire Leads	85 °C	-40 °C	180 VAC	9.26 in	43.8 mm	90 mm	235.2 mm	3.54 in	1.72 in	321 W	AC DC Converter	1	3750 V	93 %	32 VDC	26 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 128.30
		5	$ 122.20
		10	$ 116.80
		25	$ 113.40

Description

General part information

HVG-320 Series

8.9A 36V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
