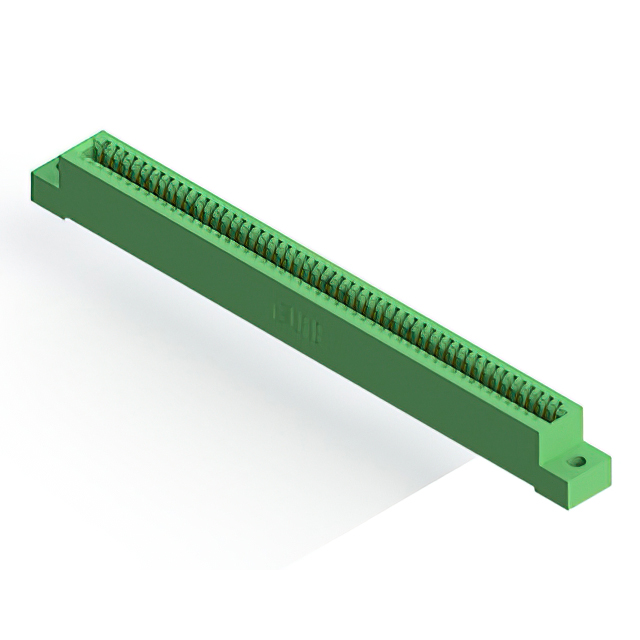

325-051-520-109
ActiveEDAC Inc.
CONN EDGE SINGLE FML 51POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
325-051-520-109
ActiveEDAC Inc.
CONN EDGE SINGLE FML 51POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 325-051-520-109 |
|---|---|
| Card Thickness | 3.18 mm |
| Card Thickness | 0.125 in |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 0.16 in |
| Flange Feature [diameter] | 4.06 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 51 |
| Number of Positions/Bay/Row [custom] | 51 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
325-051 Series
| Part | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Thickness | Card Thickness | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Number of Rows | Termination | Termination Rows | Card Type | Gender | Material - Insulation | Contact Finish | Contact Type | Color | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | 0.16 in | Flush Mount Top Opening Unthreaded | 4.06 mm | 3.18 mm | 0.125 in | 2.54 mm | 0.1 in | 51 | 1 | Solder | 1 | Non Specified - Single Edge | Female | Diallyl Phthalate (DAP) | Gold | Cantilever | Green | Single | 125 °C | -65 ░C | Copper Alloy | 51 |
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | 3.18 mm | 0.125 in | 2.54 mm | 0.1 in | 51 | 1 | Solder | 1 | Non Specified - Single Edge | Female | Diallyl Phthalate (DAP) | Gold | Cantilever | Green | Single | 125 °C | -65 ░C | Copper Alloy | 51 | ||
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | 3.18 mm | 0.125 in | 2.54 mm | 0.1 in | 51 | 1 | Wire Wrap | 1 | Non Specified - Single Edge | Female | Diallyl Phthalate (DAP) | Gold | Cantilever | Green | Single | 125 °C | -65 ░C | Copper Alloy | 51 | |||
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | 3.18 mm | 0.125 in | 2.54 mm | 0.1 in | 51 | 1 | Solder | 1 | Non Specified - Single Edge | Female | Diallyl Phthalate (DAP) | Gold | Cantilever | Green | Single | 125 °C | -65 ░C | Copper Alloy | 51 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 14.45 | |
Description
General part information
325-051 Series
51 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
