10072354-G01-22KLF - 10072354-G01-22KLF

10072354-G01-22KLF

Active
Amphenol ICC (FCI)

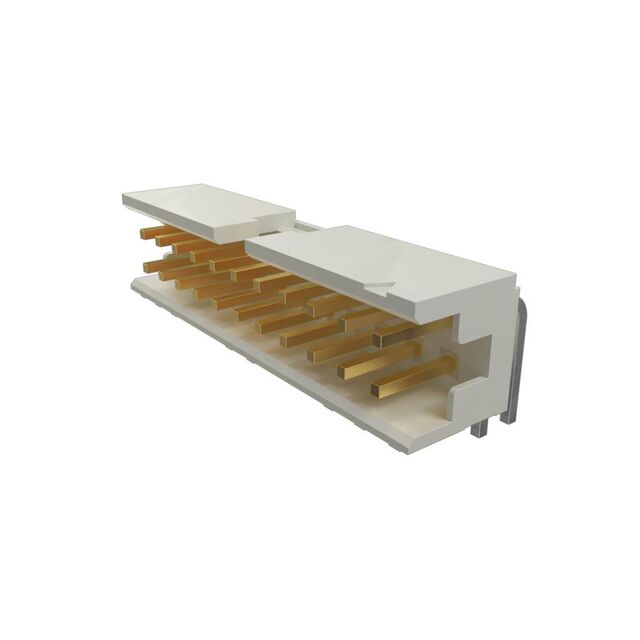

CONN HEADER R/A 22POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetminitek productpresentation Other Related Document+1
10072354-G01-22KLF - 10072354-G01-22KLF

10072354-G01-22KLF

Active
Amphenol ICC (FCI)

CONN HEADER R/A 22POS 2MM

Deep-Dive with AI

DocumentsDatasheetminitek productpresentation Other Related Document+1

Technical Specifications

Parameters and characteristics for this part

Specification10072354-G01-22KLF
Connector TypeHeader
Contact Finish - MatingGold, GXT™
Contact Finish - PostTin
Contact Finish Thickness - Mating30 Áin
Contact Finish Thickness - Mating0.76 Ám
Contact Finish Thickness - Post2 çm
Contact Finish Thickness - Post78.7 çin
Contact Length - Mating4 mm
Contact Length - Mating0.157 in
Contact Length - Post0.079 "
Contact Length - Post2 mm
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)3 A
Fastening TypeDetent Lock
FeaturesKeying Slot
Insulation ColorCream
Insulation Height0.24 in
Insulation Height6.1 mm
Insulation MaterialThermoplastic
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions22 positions
Number of Positions LoadedAll
Number of Rows2
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
Row Spacing - Mating0.079 in
Row Spacing - Mating2 mm
ShroudingShrouded - 4 Wall
StyleBoard to Board, Cable
TerminationSolder
Voltage Rating200 V

10072354 Series

PartVoltage RatingContact ShapeTerminationInsulation HeightInsulation HeightContact TypeShroudingContact Length - MatingContact Length - MatingNumber of RowsContact Finish Thickness - PostContact Finish Thickness - PostContact Finish - PostCurrent Rating (Amps)Row Spacing - MatingRow Spacing - MatingContact Length - PostContact Length - PostContact Finish - MatingInsulation MaterialConnector TypeContact MaterialContact Finish Thickness - MatingStyleFeaturesInsulation ColorPitch - Mating [x]Pitch - Mating [x]Material Flammability RatingNumber of Positions LoadedFastening TypeMounting TypeNumber of PositionsContact Finish Thickness - MatingContact Finish Thickness - Mating
