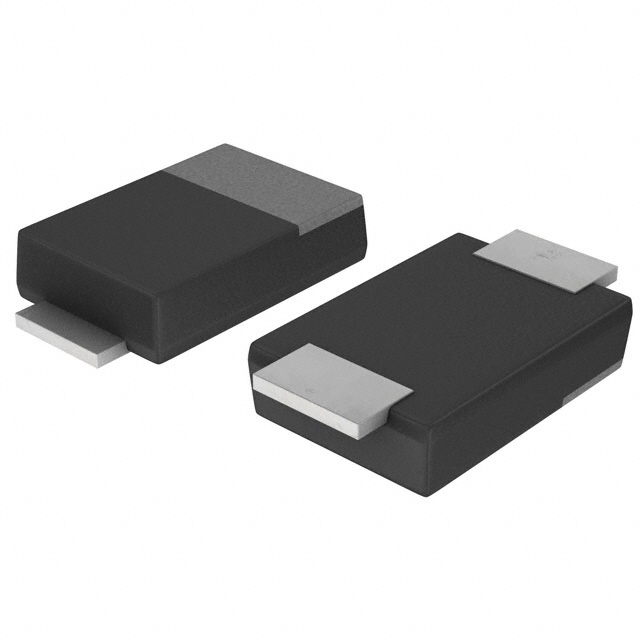

RSX301LA-30TR

Obsolete

Rohm Semiconductor

DIODE SCHOTTKY 30V 3A PMDT

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

DIODE SCHOTTKY 30V 3A PMDT

Technical Specifications

Parameters and characteristics for this part

Specification	RSX301LA-30TR

Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	200 µA
Mounting Type	Surface Mount
Operating Temperature - Junction	150 °C
Package / Case	SOD-128
Speed	200 mA, 500 ns
Supplier Device Package	PMDT
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	420 mV

High Efficiency , High Reliability Type Schottky Barrier Diode

Part	Supplier Device Package	Package / Case	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Speed	Current - Reverse Leakage @ Vr	Mounting Type	Technology	Operating Temperature - Junction	Grade	Qualification
Rohm Semiconductor RSX301LA-30TR	PMDT	SOD-128	3 A	30 V	420 mV	200 mA 500 ns	200 µA	Surface Mount	Schottky	150 °C
Rohm Semiconductor RSX301L-30TE25	PMDS	DO-214AC SMA	3 A	30 V	420 mV	200 mA 500 ns	200 µA	Surface Mount	Schottky	150 °C
Rohm Semiconductor RSX301LAM30TFTR	PMDTM	SOD-128	3 A	30 V		200 mA 500 ns	200 µA	Surface Mount	Schottky	150 °C	Automotive	AEC-Q101

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RSX301LAM30TF is a schottky barrier diode with low VFand Low IR, suitable for general rectification. It is a highly reliable product for automotive.
