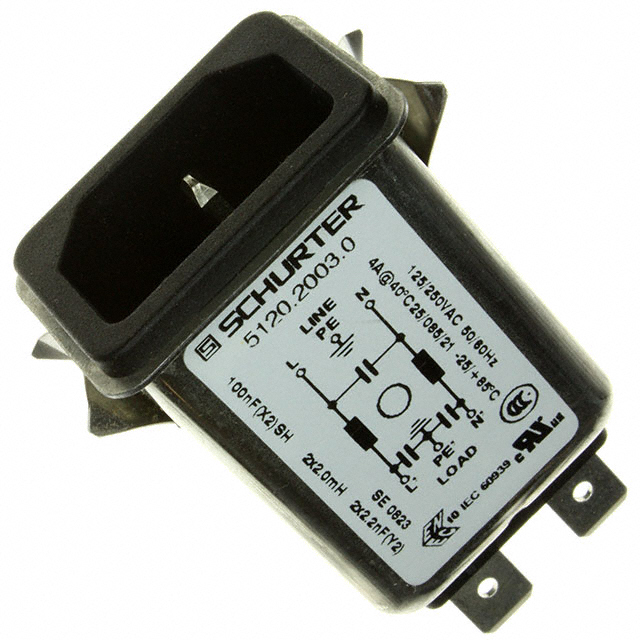

5120.2003.0
ActiveSCHURTER Inc.
5120, MOUNTING: SNAP-IN, FRONT SIDE, FILTER: STANDARD VERSION, 4 A, THEMOPLAST / STEEL TIN-PLATED APPLIANCE INLET: IEC C14, SUIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5120.2003.0 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | CCC, ENEC, cULus |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 4 A |
| Current Rating - Filter | 4 A |
| Features | Shielded |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 29.4 mm |
| Panel Cutout Dimensions [y] | 21.5 mm |
| Panel Thickness [Max] | 0.079 " |
| Panel Thickness [Max] | 2 mm |
| Panel Thickness [Min] | 0.031 " |
| Panel Thickness [Min] | 0.79 mm |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
5120.2003 Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
