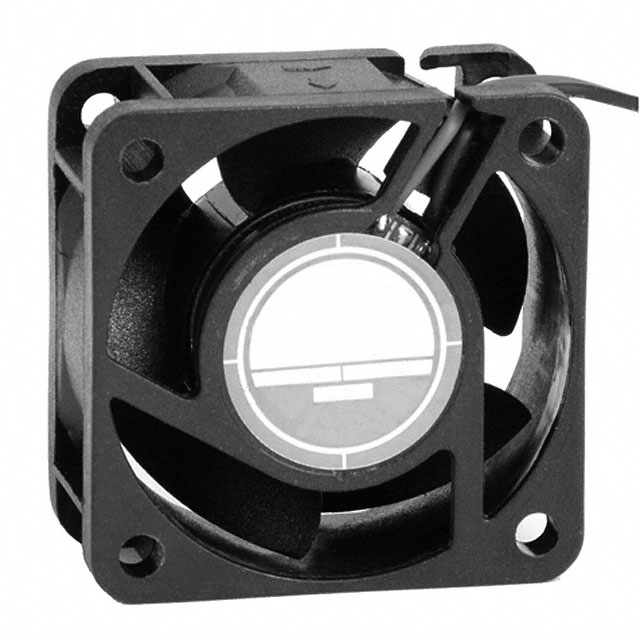

OD4020-05HB02A

Active

Orion Fans

FAN AXIAL 40X20MM BALL 5VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OD4020-05HB02A

Active

Orion Fans

FAN AXIAL 40X20MM BALL 5VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD4020-05HB02A

Air Flow	8.7 CFM
Air Flow	0.244 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	0.23 A
Fan Type	Tubeaxial
Features	Locked Rotor Sensor, Auto Restart
Lifetime @ Temp.	65000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	32.1 dB(A)
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	1.6 W
RPM	7780 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	0.32 in H2O
Static Pressure	79.7 Pa
Termination	3 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	4.5 V
Width [y]	20 mm

OD4020 Series

...

Part	Termination	Voltage - Rated	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Fan Type	Bearing Type	Material - Blade	Width [y]	Features	Static Pressure	Static Pressure	Current Rating (Amps)	RPM	Air Flow	Air Flow	Noise	Power (Watts)	Approval Agency	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]
Orion Fans OD4020-12LLSS01A	3 Wire Leads	12 VDC	40 mm	Square	40 mm	Tubeaxial	Sealed Sleeve	Polybutylene Terephthalate (PBT)	20 mm	Speed Sensor (Tach)
Orion Fans OD4020-12LSS01A	3 Wire Leads	12 VDC	40 mm	Square	40 mm	Tubeaxial	Sealed Sleeve	Polybutylene Terephthalate (PBT)	20 mm	Auto Restart Speed Sensor (Tach)	0.14 in H2O	34.9 Pa	60 mA	5150 RPM	0.182 m³/min	6.5 CFM	24.1 dB(A)	980 mW	cURus TUV	-20 °C	-20 C	65 °C	65 °C	45000 Hrs	8 VDC	13.8 VDC
Orion Fans OD4020-05LB01A	3 Wire Leads	5 V	40 mm	Square	40 mm	Tubeaxial	Ball	Polybutylene Terephthalate (PBT)	20 mm	Auto Restart Speed Sensor (Tach)	0.14 in H2O	34.9 Pa		5150 RPM	0.182 m³/min	6.5 CFM	24.1 dB(A)	0.9 W	CE cURus TUV	-20 °C	-20 C	65 °C	65 °C	65000 Hrs	4.5 V	5.5 V
Orion Fans OD4020-05HB02A	3 Wire Leads	5 V	40 mm	Square	40 mm	Tubeaxial	Ball	Polybutylene Terephthalate (PBT)	20 mm	Auto Restart Locked Rotor Sensor	0.32 in H2O	79.7 Pa	0.23 A	7780 RPM	0.244 m³/min	8.7 CFM	32.1 dB(A)	1.6 W	CE cURus TUV	-20 °C	-20 C	65 °C	65 °C	65000 Hrs	4.5 V	5.5 V
Orion Fans OD4020-24LSS02A	3 Wire Leads	24 VDC	40 mm	Square	40 mm	Tubeaxial	Sealed Sleeve	Polybutylene Terephthalate (PBT)	20 mm	Auto Restart Locked Rotor Sensor	0.14 in H2O	34.9 Pa	40 mA	5150 RPM	0.182 m³/min	6.5 CFM	24.1 dB(A)	1.2 W	cURus TUV	-20 °C	-20 C	65 °C	65 °C	45000 Hrs	14 VDC	26.4 VDC
Orion Fans OD4020-05MSS	2 Wire Leads	5 V	40 mm	Square	40 mm	Tubeaxial	Sealed Sleeve	Polybutylene Terephthalate (PBT)	20 mm	Auto Restart	0.17 in H2O	42.3 Pa	0.2 A	6450 RPM	0.21 mł/min	7.5 CFM	30.3 dB(A)	1.2 W	cURus TUV	-20 °C	-20 C	65 °C	65 °C	45000 Hrs	4.5 V	5.5 V
Orion Fans OD4020-05HSS	2 Wire Leads	5 V	40 mm	Square	40 mm	Tubeaxial	Sealed Sleeve	Polybutylene Terephthalate (PBT)	20 mm	Auto Restart	0.32 in H2O	79.7 Pa	0.23 A	7780 RPM	0.244 m³/min	8.7 CFM	32.1 dB(A)	1.6 W	cURus TUV	-20 °C	-20 C	65 °C	65 °C	45000 Hrs	4.5 V	5.5 V
Orion Fans OD4020-12LB02A	3 Wire Leads	12 VDC	40 mm	Square	40 mm	Tubeaxial	Ball	Polybutylene Terephthalate (PBT)	20 mm	Auto Restart Locked Rotor Sensor	0.14 in H2O	34.9 Pa	60 mA	5150 RPM	0.182 m³/min	6.5 CFM	24.1 dB(A)	980 mW	CE cURus TUV	-20 °C	-20 C	65 °C	65 °C	65000 Hrs	8 VDC	13.8 VDC
Orion Fans OD4020-12MSS01A	3 Wire Leads	12 VDC	40 mm	Square	40 mm	Tubeaxial	Sealed Sleeve	Polybutylene Terephthalate (PBT)	20 mm	Auto Restart Speed Sensor (Tach)	0.17 in H2O	42.3 Pa		6450 RPM	0.21 mł/min	7.5 CFM	30.3 dB(A)	1.2 W	cURus TUV	-20 °C	-20 C	65 °C	65 °C	45000 Hrs	8 VDC	13.8 VDC
Orion Fans OD4020-12LS01A	3 Wire Leads	12 VDC	40 mm	Square	40 mm	Tubeaxial	Sleeve	Polybutylene Terephthalate (PBT)	20 mm	Auto Restart Speed Sensor (Tach)	0.14 in H2O	34.9 Pa	60 mA	5150 RPM	0.182 m³/min	6.5 CFM	24.1 dB(A)	980 mW	cURus TUV	-20 °C	-20 C	65 °C	65 °C	30000 Hrs	8 VDC	13.8 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.93
		10	$ 13.31
		40	$ 12.42
		80	$ 12.00
		120	$ 11.76
		280	$ 11.27
		520	$ 10.93

Description

General part information

OD4020 Series

Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Ball 8.7 CFM (0.244m³/min) 3 Wire Leads
