C0761A.41.10
ActivePrysmian Group

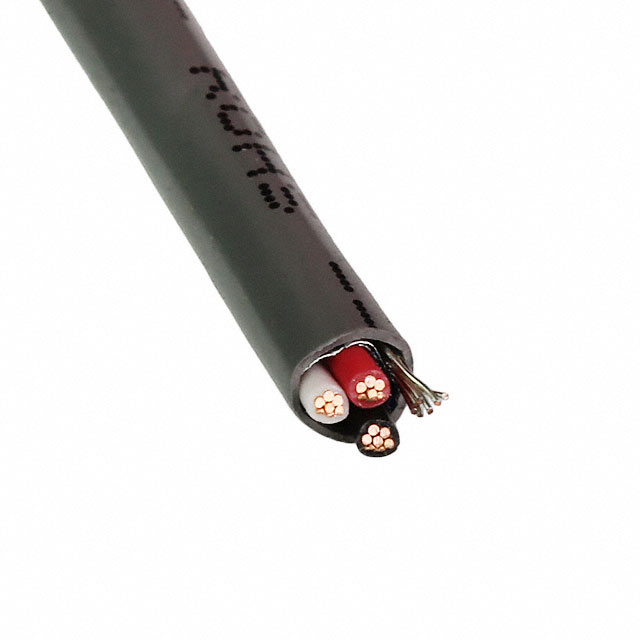

CABLE 3COND 22AWG GRAY SHLD 100'
Deep-Dive with AI
Search across all available documentation for this part.
C0761A.41.10
ActivePrysmian Group
CABLE 3COND 22AWG GRAY SHLD 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C0761A.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m, 15.24 m |
| Length [x] | 500 ', 50 ft, 100 ft |
| Length [x] | 152.4 m, 30.5 m |
| Number of Conductors | 3 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | ASTM B-33 |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Computer |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 45.17 | |
| 1 | $ 92.24 | |||
| 1 | $ 435.48 | |||
| 5 | $ 36.96 | |||
| 5 | $ 75.47 | |||
| 5 | $ 356.30 | |||
| 10 | $ 28.74 | |||
| 10 | $ 58.70 | |||
| 10 | $ 277.13 | |||
| 1000 | $ 0.43 | |||
| 2000 | $ 0.41 | |||
| 3000 | $ 0.39 | |||
| 5000 | $ 0.38 | |||
| 7000 | $ 0.37 | |||
| 10000 | $ 0.36 | |||
| 25000 | $ 0.34 | |||
Description
General part information
C0761 Series
3 Conductor Multi-Conductor Cable Gray 22 AWG Foil 1000.0' (304.8m)
Documents
Technical documentation and resources
No documents available
