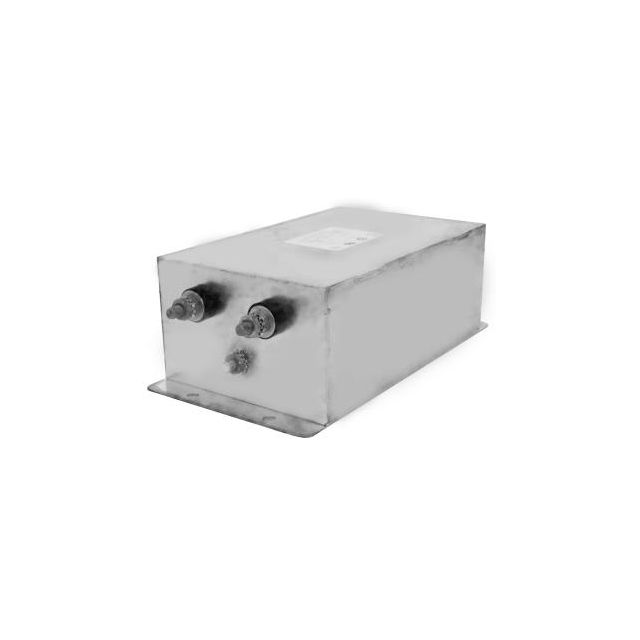

RP135-100-2.2-S

Active

Astrodyne TDI

LINE FILTER 250VAC 100A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RP135-100-2.2-S

Active

Astrodyne TDI

LINE FILTER 250VAC 100A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP135-100-2.2-S

Applications	General Purpose
Approval Agency	CE, SEMKO, cURus
Configuration	Single Stage
Current	100 A
Filter Type	Single Phase
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Threaded Post (M6)
Voltage - Rated AC	250 V

RP135 Series

...

Part	Applications	Termination Style	Frequency - Operating [Max]	Frequency - Operating [Min]	Approval Agency	Operating Temperature [custom]	Mounting Type	Configuration	Filter Type	Voltage - Rated AC	Current
Astrodyne TDI RP135-100-2.2-C	General Purpose	Terminal Block	60 Hz	50 Hz	CE cURus SEMKO	-25 °C 100 °C	Chassis Mount	Single Stage	Single Phase	250 V	100 A
Astrodyne TDI RP135-16-4.7-W	General Purpose	Wire Leads	60 Hz	50 Hz	CE cURus SEMKO	-25 °C 100 °C	Chassis Mount	Single Stage	Single Phase	250 V	16 A
Astrodyne TDI RP135-180-2.2-W	General Purpose	Wire Leads	60 Hz	50 Hz	CE cURus SEMKO	-25 °C 100 °C	Chassis Mount	Single Stage	Single Phase	250 V	180 A
Astrodyne TDI RP135-200-.47-S	General Purpose	Threaded Post (M10)	60 Hz	50 Hz	CE cURus SEMKO	-25 °C 100 °C	Chassis Mount	Single Stage	Single Phase	250 V	200 A
Astrodyne TDI RP135-100-2.2-S	General Purpose	Threaded Post (M6)	60 Hz	50 Hz	CE cURus SEMKO	-25 °C 100 °C	Chassis Mount	Single Stage	Single Phase	250 V	100 A
Astrodyne TDI RP135-30-1-S	General Purpose	Threaded Post (M4)	60 Hz	50 Hz	CE cURus SEMKO	-25 °C 100 °C	Chassis Mount	Single Stage	Single Phase	250 V	30 A
Astrodyne TDI RP135-10-.47-W	General Purpose	Wire Leads	60 Hz	50 Hz	CE cURus SEMKO	-25 °C 100 °C	Chassis Mount	Single Stage	Single Phase	250 V	10 A
Astrodyne TDI RP135-100-4.7-C	General Purpose	Terminal Block	60 Hz	50 Hz	CE cURus SEMKO	-25 °C 100 °C	Chassis Mount	Single Stage	Single Phase	250 V	100 A
Astrodyne TDI RP135-3-.47-QD	General Purpose	Quick Connect	60 Hz	50 Hz	CE cURus SEMKO	-25 °C 100 °C	Chassis Mount	Single Stage	Single Phase	250 V	3 A
Astrodyne TDI RP135-60-22-W	General Purpose	Wire Leads	60 Hz	50 Hz	CE cURus SEMKO	-25 °C 100 °C	Chassis Mount	Single Stage	Single Phase	250 V	60 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 276.16

Description

General part information

RP135 Series

Single Phase EMC/EMI Line Filter 100 A 250V 50/60Hz Single Stage Threaded Post (M6)
