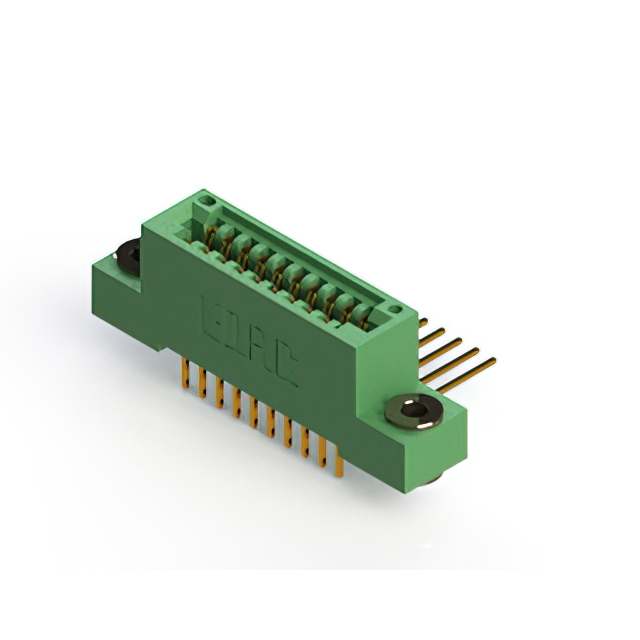

845-020-558-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 20POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-020-558-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 20POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-020-558-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
845-020 Series
...
| Part | Number of Rows | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Pitch [x] | Pitch [x] | Contact Type | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Termination Rows | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Flange Feature | Gender | Contact Finish | Contact Material | Color | Material - Insulation | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | Single | 125 °C | -40 °C | Non Specified - Single Edge | 2.54 mm | 0.1 in | Cantilever | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 1 | Through Hole | 10 Áin | 0.25 Ám | 20 | 20 | 20 | 4-40 Threaded Insert Top Mount Opening | Female | Gold | Copper Alloy | Green | Diallyl Phthalate (DAP) | ||||||
EDAC Inc. | 2 | Dual | 125 °C | -40 °C | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Cantilever | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 2 | Through Hole | 10 Áin | 0.25 Ám | Side Mount Opening Unthreaded | Female | Gold | Copper Alloy | Green | Diallyl Phthalate (DAP) | 10 | 3.25 mm | 0.128 in | ||||||
EDAC Inc. | 1 | Single | 125 °C | -40 °C | Non Specified - Single Edge | 2.54 mm | 0.1 in | Cantilever | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 1 | Through Hole | 10 Áin | 0.25 Ám | 20 | 20 | 20 | 4-40 Threaded Insert Top Mount Opening | Female | Gold | Copper Alloy | Green | Diallyl Phthalate (DAP) | ||||||
EDAC Inc. | 2 | Dual | 125 °C | -40 °C | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Cantilever | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2 | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | Female | Gold | Copper Alloy | Green | Diallyl Phthalate (DAP) | 10 | 3.96 mm | 0.156 in | Card Extender | |||||
EDAC Inc. | 1 | Single | 125 °C | -40 °C | Non Specified - Single Edge | 2.54 mm | 0.1 in | Cantilever | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 1 | Through Hole | 10 Áin | 0.25 Ám | 20 | 20 | 20 | 4-40 Threaded Insert Top Mount Opening | Female | Gold | Copper Alloy | Green | Diallyl Phthalate (DAP) | ||||||
EDAC Inc. | 1 | Single | 125 °C | -40 °C | Non Specified - Single Edge | 2.54 mm | 0.1 in | Cantilever | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Through Hole Right Angle | 10 Áin | 0.25 Ám | 20 | 20 | 20 | Side Mount Opening Unthreaded | Female | Gold | Copper Alloy | Green | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 2 | Dual | 125 °C | -40 °C | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Cantilever | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 2 | Through Hole | 10 Áin | 0.25 Ám | Side Mount Opening Unthreaded | Female | Gold | Copper Alloy | Green | Diallyl Phthalate (DAP) | 10 | 3.25 mm | 0.128 in | ||||||
EDAC Inc. | 1 | Single | 125 °C | -40 °C | Non Specified - Single Edge | 2.54 mm | 0.1 in | Cantilever | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 1 | Through Hole | 10 Áin | 0.25 Ám | 20 | 20 | 20 | Female | Gold | Copper Alloy | Green | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 in | |||||
EDAC Inc. | 2 | Dual | 125 °C | -40 °C | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Cantilever | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2 | Through Hole Right Angle | 10 Áin | 0.25 Ám | Floating Bobbin Flush Mount | Female | Gold | Copper Alloy | Green | Diallyl Phthalate (DAP) | 10 | 2.95 mm | 0.116 in | ||||||
EDAC Inc. | 1 | Single | 125 °C | -40 °C | Non Specified - Single Edge | 2.54 mm | 0.1 in | Cantilever | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 1 | Through Hole | 10 Áin | 0.25 Ám | 20 | 20 | 20 | Floating Bobbin Top Mount Opening | Female | Gold | Copper Alloy | Green | Diallyl Phthalate (DAP) | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 70.17 | |
Description
General part information
845-020 Series
20 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
