0395000012

Active

Molex

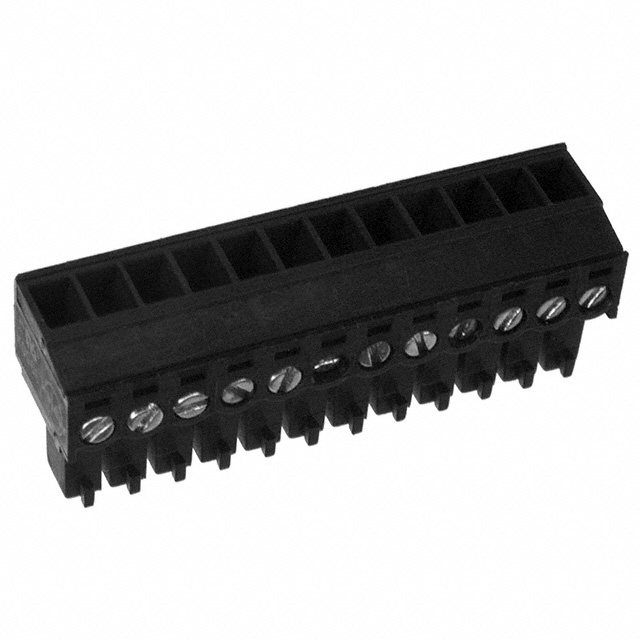

TERM BLOCK PLUG 12POS STR 3.5MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents39500-001 Prod Spec

0395000012

Active

Molex

TERM BLOCK PLUG 12POS STR 3.5MM

Deep-Dive with AI

Documents39500-001 Prod Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395000012

Color	Black
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Current - UL	8 A
Insulation Height	0.44 in
Insulation Height	11.18 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	12
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	12
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.23 Nm
Torque - Screw	2 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	16 AWG
Wire Strip Length	6.5 mm

039500 Series

...

Part	Positions Per Level	Torque - Screw	Torque - Screw	Color	Termination Style	Insulation Height	Insulation Height	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Positions	Material Flammability Rating	Current - UL	Contact Mating Finish	Mounting Type	Number of Levels	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Wire Strip Length	Features	Pitch [x]	Pitch [x]	Voltage - UL	Number of Positions
Molex 0395000604	4	0.23 Nm	2 Lb-In	Black	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG	4	UL94 V-0	8 A	Gold	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm	Positions Stamped	3.5 mm	0.138 in	300 V
Molex 0395000505	5	0.23 Nm	2 Lb-In	Black	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG		UL94 V-0	8 A	Gold	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm		3.5 mm	0.138 in	300 V
Molex 0395000611	11	0.23 Nm	2 Lb-In	Black	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG	11	UL94 V-0	8 A	Gold	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm	Positions Stamped	3.5 mm	0.138 in	300 V
Molex 0395000116	16	0.23 Nm	2 Lb-In	Black	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG		UL94 V-0	8 A	Tin	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm	Positions Stamped	3.5 mm	0.138 in	300 V	16
Molex 0395000112	12	0.23 Nm	2 Lb-In	Black	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG	12	UL94 V-0	8 A	Tin	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm	Positions Stamped	3.5 mm	0.138 in	300 V
Molex 0395000608	8	0.23 Nm	2 Lb-In	Black	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG	8	UL94 V-0	8 A	Gold	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm	Positions Stamped	3.5 mm	0.138 in	300 V
Molex 0395000109	9	0.23 Nm	2 Lb-In	Black	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG	9	UL94 V-0	8 A	Tin	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm	Positions Stamped	3.5 mm	0.138 in	300 V
Molex 0395005607	7	0.23 Nm	2 Lb-In	Green	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG	7	UL94 V-0	8 A	Gold	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm	Positions Stamped	3.5 mm	0.138 in	300 V
Molex 0395000120	20	0.23 Nm	2 Lb-In	Black	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG	20	UL94 V-0	8 A	Tin	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm	Positions Stamped	3.5 mm	0.138 in	300 V
Molex 0395000012	12	0.23 Nm	2 Lb-In	Black	Screw - Rising Cage Clamp	0.44 in	11.18 mm	Plug Female Sockets	30 AWG	16 AWG	12	UL94 V-0	8 A	Tin	Free Hanging (In-Line)	1	Phosphor Bronze	-40 °C	115 °C	6.5 mm		3.5 mm	0.138 in	300 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.08
		10	$ 3.87
		25	$ 3.62
		50	$ 3.22
		100	$ 3.15
		250	$ 2.91
		756	$ 2.45
		1512	$ 2.28

Description

General part information

039500 Series

12 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

39500-001 Prod Spec

Datasheet
