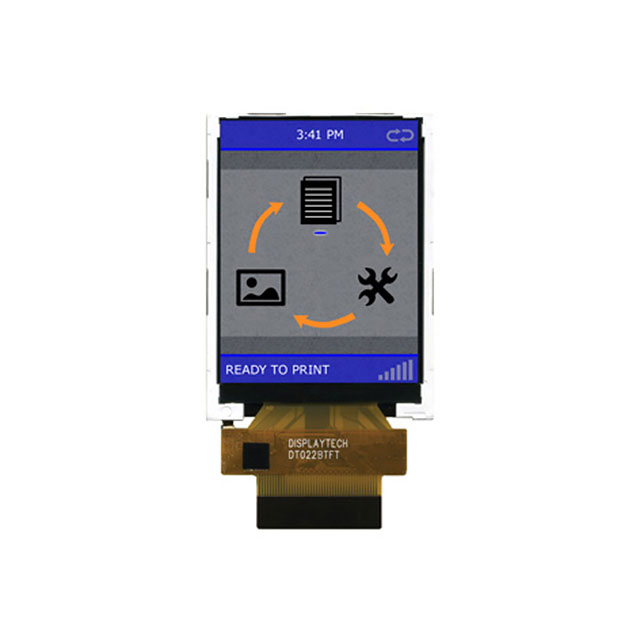

DT022BTFT
ActiveDisplaytech
LCD DISP TFT 2.2" 240X320
Deep-Dive with AI
Search across all available documentation for this part.
DT022BTFT
ActiveDisplaytech
LCD DISP TFT 2.2" 240X320
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DT022BTFT |
|---|---|
| Backlight | LED |
| Diagonal Screen Size | 55.88 mm |
| Diagonal Screen Size [custom] | 2.2 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels [x] | 240 pixels |
| Dot Pixels [y] | 320 |
| Graphics Color | Green, Red, Blue |
| Interface | Parallel |
| Viewing Area [x] | 33.84 mm |
| Viewing Area [y] | 45.12 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.53 | |
| 10 | $ 18.43 | |||
| 100 | $ 16.09 | |||
| 500 | $ 14.76 | |||
Description
General part information
DT022 Series
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel 2.2" (55.88mm) 240 x 320
