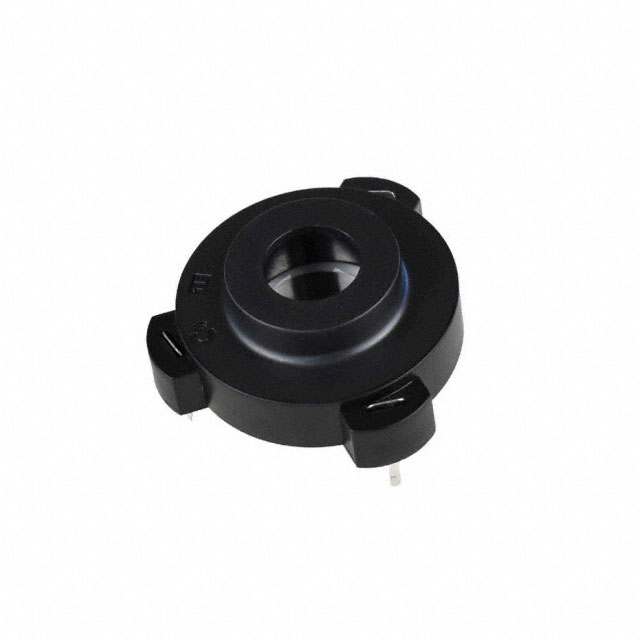

CPI-3816-95T

Active

CUI Devices

AUDIO BUZZER PIEZO 6VDC 16VDC 30MA 9VDC 95DB 2700HZ TO 3700HZ THROUGH HOLE PIN CARTON

Search across all available documentation for this part.

Active

CUI Devices

AUDIO BUZZER PIEZO 6VDC 16VDC 30MA 9VDC 95DB 2700HZ TO 3700HZ THROUGH HOLE PIN CARTON

Technical Specifications

Parameters and characteristics for this part

Specification	CPI-3816-95T

Current - Supply	30 mA
Driver Circuitry	Externally Driven, Transducer
Frequency	3.2 kHz
Height - Seated (Max) [Max] [z]	16.5 mm
Height - Seated (Max) [Max] [z]	16.51 mm
Input Type	DC
Mounting Type	Through Hole
Operating Mode	Single Tone
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Port Location	Top
Size / Dimension	38 mm
Size / Dimension [diameter]	1.496 "
Sound Pressure Level (SPL)	95 dB
Technology	Piezo
Termination	PC Pins
Voltage - Rated	9 V
Voltage Range [Max]	16 V
Voltage Range [Min]	6 VDC

Part	Size / Dimension	Size / Dimension [diameter]	Input Type	Frequency	Operating Mode	Mounting Type	Current - Supply	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Voltage Range [Min]	Voltage Range [Max]	Technology	Termination	Sound Pressure Level (SPL)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Driver Circuitry	Port Location
CUI Devices CPI-3816-95T	38 mm	1.496 "	DC	3.2 kHz	Single Tone	Through Hole	30 mA	-20 C	70 °C	9 V	6 VDC	16 V	Piezo	PC Pins	95 dB	16.5 mm	16.51 mm	Externally Driven Transducer	Top

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Transducer, Externally Driven Piezo 9 V 30mA 3.2kHz 95dB @ 9V, 30cm Through Hole PC Pins
