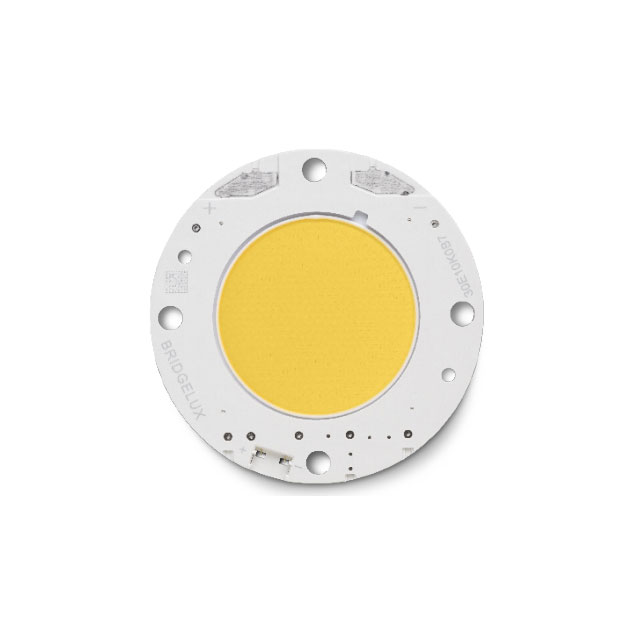

BXRC-50C10K1-C-83

Active

BRIDGELUX

LED COB VERO 29C WHT ROUND 5000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRC-50C10K1-C-83

Active

BRIDGELUX

LED COB VERO 29C WHT ROUND 5000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRC-50C10K1-C-83

Color	Cool, White
Configuration	Round
CRI (Color Rendering Index)	70
Current - Max [Max]	4.75 A
Current - Test	1.3 A
Height [z]	1.9 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	29.1 mm
Lumens/Watt @ Current - Test	200 lm/W
Luminous Flux @ Current/Temperature	17364 lm
Size / Dimension [diameter]	49.2 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	66.7 V

BXRC-50 Series

...

Part	Lumens/Watt @ Current - Test	Size / Dimension [diameter]	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	Current - Test	Type	Configuration	CCT (K)	Height [z]	CRI (Color Rendering Index)	Viewing Angle	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Color	Lens Type	Temperature - Test	Features
BRIDGELUX BXRC-50G10K1-C-74	145 lm/W	49.2 mm	3.42 A	29.2 mm	1.71 A	Chip On Board (COB)	Round	5000 K	1.9 mm	90	120 °	17235 lm	69.4 V	Cool White	Flat
BRIDGELUX BXRC-50E10K1-C-74	171 lm/W	49.2 mm	3.42 A	29.2 mm	1.71 A	Chip On Board (COB)	Round	5000 K	1.9 mm	80	120 °	20291 lm	69.4 V	Cool White	Flat
BRIDGELUX BXRC-50E2001-C-73-SE	155 lm/W	36.2 mm	1.26 A	13.4 mm	630 mA	Chip On Board (COB)	Round		3.6 mm	80	120 °	3201 lm	33.9 V	Cool White	Flat	85 °C
BRIDGELUX BXRC-50G10K1-D-73	145 lm/W	49.2 mm	4.2 A	29.2 mm	2.1 A	Chip On Board (COB)	Round		1.9 mm	90	120 °	11467 lm	37.6 V	Cool White	Flat
BRIDGELUX BXRC-50C1000-B-04	140 lm/W	20 mm	700 mA	9.9 mm	350 mA	Chip On Board (COB)	Starboard	5000 K	1.9 mm	70	120 °	1305 lm	26.7 V	Cool White	Flat		With Connector
BRIDGELUX BXRC-50C10K1-C-83	200 lm/W	49.2 mm	4.75 A	29.1 mm	1.3 A	Chip On Board (COB)	Round		1.9 mm	70	120 °	17364 lm	66.7 V	Cool White	Flat
BRIDGELUX BXRC-50C4001-B-73	163 lm/W	36.2 mm	1.8 A	18.4 mm	900 mA	Chip On Board (COB)	Round		1.9 mm	70	120 °	4963 lm	33.9 V	Cool White	Flat	85 °C
BRIDGELUX BXRC-50E4000-F-04	130 lm/W	36.2 mm	2.1 A	18.4 mm	1.05 A	Chip On Board (COB)	Round	5000 K	1.9 mm	80	120 °	4045 lm	29.5 V	Cool White	Flat		With Connector
BRIDGELUX BXRC-50G10K1-C-83-SE	166 lm/W	49.2 mm	4.75 A	29.1 mm	1.3 A	Chip On Board (COB)	Round		3.6 mm	90	120 °	14403 lm	66.7 V	Cool White	Flat
BRIDGELUX BXRC-50E2001-C-74-SE	155 lm/W	36.2 mm	1.26 A	13.4 mm	630 mA	Chip On Board (COB)	Round	5000 K	3.6 mm	80	120 °	3315 lm	33.9 V	Cool White	Flat	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 40.51
		10	$ 31.72
		80	$ 27.71

Description

General part information

BXRC-50 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 8 Vero® 29 Array White, Cool Round
