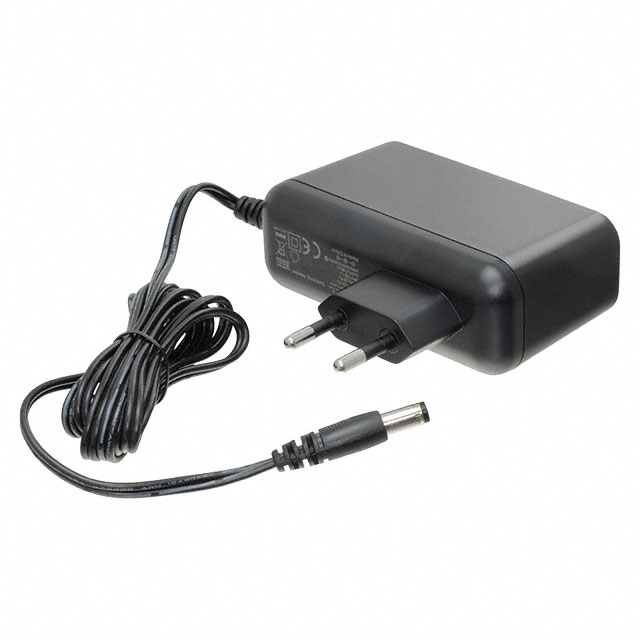

WR9ME3000CCP-F(R6B)

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 12V 36W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 12V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9ME3000CCP-F(R6B)

Applications	ITE (Commercial)
Approval Agency	CB, CE, SIQ, UKRSepro
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	3 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	45 °C
Operating Temperature [Min]	-5 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	Europe
Size / Dimension [x]	94 mm
Size / Dimension [x]	3.7 in
Size / Dimension [y]	1.34 in
Size / Dimension [y]	34 mm
Size / Dimension [z]	3.62 "
Size / Dimension [z]	91.9 mm
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Cord Length	Cord Length	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output	Power (Watts)	Input Connector	Region Utilized	Applications	Output Connector	Output Connector [diameter]	Output Connector [z]	Polarization	Approval Agency	Efficiency	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Form	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Standard Number	Input Type
GlobTek, Inc. WR9ME3000CCP-F(R6B)	1.5 m	59 in	-5 °C	45 °C	12 V	36 W	CEE 7/16	Europe	ITE (Commercial)	Barrel Plug	2.1 mm 5.5 mm	11 mm	Positive Center	CB CE SIQ UKRSepro	Level VI	3 A	90 VAC	264 VAC	75 mW	Wall Mount (Class II)	3.62 "	1.34 in	34 mm	94 mm	3.7 in	91.9 mm	60950-1	Fixed Blade

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 36 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
