0395245008

Active

Molex

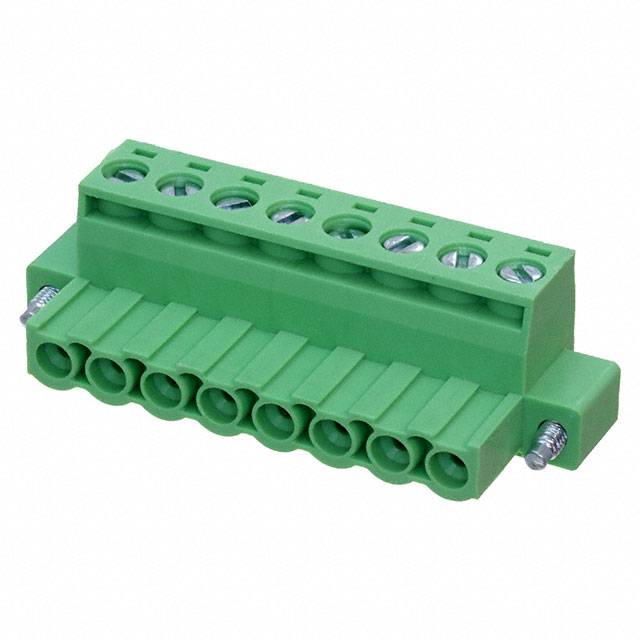

TERM BLOCK PLUG 8POS STR 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0395245008

Active

Molex

TERM BLOCK PLUG 8POS STR 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395245008

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Current - UL	18 A
Features	Mating Flange
Insulation Height	0.591 in
Insulation Height	15 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	8
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	8
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.56 Nm
Torque - Screw	5 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Strip Length	6.5 mm

039524 Series

Part	Torque - Screw	Torque - Screw	Contact Mating Finish	Wire Strip Length	Number of Levels	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Positions	Color	Contact Material	Features	Type	Positions Per Level	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Current - UL	Material Flammability Rating	Voltage - UL	Mounting Type	Termination Style	Number of Positions
Molex 0395245008	0.56 Nm	5 Lb-In	Tin	6.5 mm	1	5 mm	0.197 in	-40 °C	115 °C	0.591 in	15 mm	8	Green	Phosphor Bronze	Mating Flange	Plug Female Sockets	8	30 AWG	12 AWG	18 A	UL94 V-0	300 V	Free Hanging (In-Line)	Screw - Rising Cage Clamp
Molex 0395240006	0.56 Nm	5 Lb-In	Tin	6.5 mm	1	5 mm	0.197 in	-40 °C	115 °C	0.591 in	15 mm	6	Black	Phosphor Bronze	Mating Flange	Plug Female Sockets	6	30 AWG	12 AWG	18 A	UL94 V-0	300 V	Free Hanging (In-Line)	Screw - Rising Cage Clamp
Molex 0395245024	0.56 Nm	5 Lb-In	Tin	6.5 mm	1	5 mm	0.197 in	-40 °C	115 °C	0.591 in	15 mm	24	Green	Phosphor Bronze	Mating Flange	Plug Female Sockets		30 AWG	12 AWG	18 A	UL94 V-0	300 V	Free Hanging (In-Line)	Screw - Rising Cage Clamp
Molex 0395240019	0.56 Nm	5 Lb-In	Tin	6.5 mm	1	5 mm	0.197 in	-40 °C	115 °C	0.591 in	15 mm	19	Black	Phosphor Bronze	Mating Flange	Plug Female Sockets	19	30 AWG	12 AWG	18 A	UL94 V-0	300 V	Free Hanging (In-Line)	Screw - Rising Cage Clamp
Molex 0395245017	0.56 Nm	5 Lb-In	Tin	6.5 mm	1	5 mm	0.197 in	-40 °C	115 °C	0.591 in	15 mm		Green	Phosphor Bronze	Mating Flange	Plug Female Sockets	17	30 AWG	12 AWG	18 A	UL94 V-0	300 V	Free Hanging (In-Line)	Screw - Rising Cage Clamp
Molex 0395245016	0.56 Nm	5 Lb-In	Tin	6.5 mm	1	5 mm	0.197 in	-40 °C	115 °C	0.591 in	15 mm		Green	Phosphor Bronze	Mating Flange	Plug Female Sockets	16	30 AWG	12 AWG	18 A	UL94 V-0	300 V	Free Hanging (In-Line)	Screw - Rising Cage Clamp	16
Molex 0395245007	0.56 Nm	5 Lb-In	Tin	6.5 mm	1	5 mm	0.197 in	-40 °C	115 °C	0.591 in	15 mm	7	Green	Phosphor Bronze	Mating Flange	Plug Female Sockets	7	30 AWG	12 AWG	18 A	UL94 V-0	300 V	Free Hanging (In-Line)	Screw - Rising Cage Clamp
Molex 0395240021	0.56 Nm	5 Lb-In	Tin	6.5 mm	1	5 mm	0.197 in	-40 °C	115 °C	0.591 in	15 mm	21	Black	Phosphor Bronze	Mating Flange	Plug Female Sockets	21	30 AWG	12 AWG	18 A	UL94 V-0	300 V	Free Hanging (In-Line)	Screw - Rising Cage Clamp
Molex 0395240011	0.56 Nm	5 Lb-In	Tin	6.5 mm	1	5 mm	0.197 in	-40 °C	115 °C	0.591 in	15 mm	11	Black	Phosphor Bronze	Mating Flange	Plug Female Sockets	11	30 AWG	12 AWG	18 A	UL94 V-0	300 V	Free Hanging (In-Line)	Screw - Rising Cage Clamp
Molex 0395240005	0.56 Nm	5 Lb-In	Tin	6.5 mm	1	5 mm	0.197 in	-40 °C	115 °C	0.591 in	15 mm		Black	Phosphor Bronze	Mating Flange	Plug Female Sockets	5	30 AWG	12 AWG	18 A	UL94 V-0	300 V	Free Hanging (In-Line)	Screw - Rising Cage Clamp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.93
		10	$ 5.28
		25	$ 4.95
		50	$ 4.40
		100	$ 4.30
		280	$ 3.97
		560	$ 3.59
		1120	$ 3.18

Description

General part information

039524 Series

8 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
