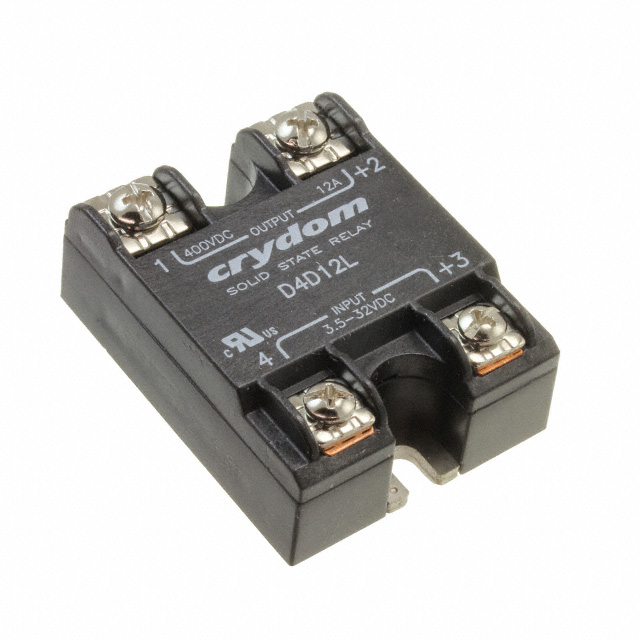

D4D12L
ObsoleteSensata-Crydom
SSR RELAY SPST-NO 12A 0-400V
Deep-Dive with AI
Search across all available documentation for this part.
D4D12L
ObsoleteSensata-Crydom
SSR RELAY SPST-NO 12A 0-400V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D4D12L |
|---|---|
| Approval Agency | CE, cURus |
| Load Current | 12 A |
| Mounting Type | Chassis Mount |
| On-State Resistance (Max) [Max] | 350 mOhm |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 3.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 117.29 | |
Description
General part information
D4D12 Series
Solid State SPST-NO (1 Form A) Hockey Puck
