J115F21CL12VDCS.9

Active

CIT Relay and Switch

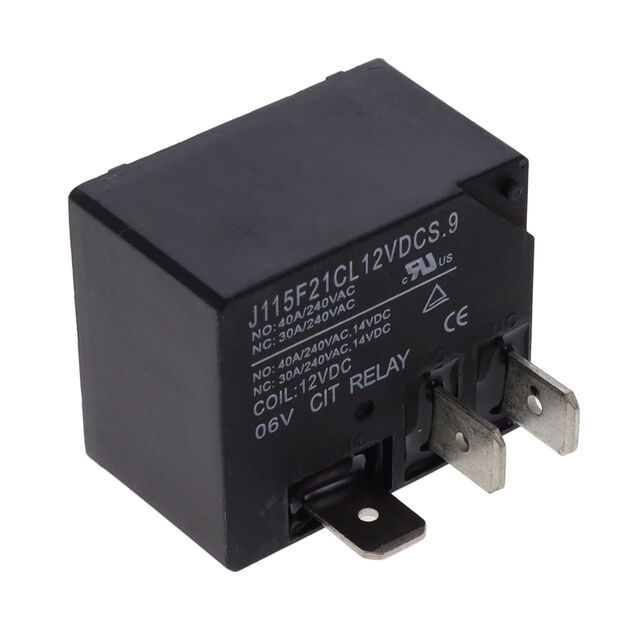

RELAY GEN PURPOSE SPDT 40A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFood & Beverage Switches & Relay Datasheet

J115F21CL12VDCS.9

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPDT 40A 12V

Deep-Dive with AI

DocumentsFood & Beverage Switches & Relay Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	J115F21CL12VDCS.9

Approval Agency	cURus, TUV
Coil Current	75 mA
Coil Insulation	Class F
Coil Resistance	160 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	40 A
Load - Max Switching	4400 W, 11080 VA
Mounting Type	Through Hole
Must Operate Voltage	9 VDC
Must Release Voltage	1.2 VDC
Operate Time	15 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	10 ms
Seal Rating	Sealed - Fully
Switching Voltage	277 VAC, 110 VDC
Termination Style	PC Pin, Quick Connect
Termination Style	0.25 in

J115F21 Series

Part	Coil Resistance	Mounting Type	Coil Insulation	Switching Voltage	Seal Rating	Operate Time	Contact Form	Relay Type	Approval Agency	Release Time	Coil Voltage	Must Release Voltage	Contact Material	Termination Style	Termination Style	Must Operate Voltage	Load - Max Switching	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Coil Current	Contact Rating (Current)
CIT Relay and Switch J115F21CL12VDCS.9	160 Ohms	Through Hole	Class F	110 VDC 277 VAC	Sealed - Fully	15 ms	SPDT (1 Form C)	General Purpose	cURus TUV	10 ms	12 VDC	1.2 VDC	Silver Tin Oxide (AgSnO)	PC Pin Quick Connect	0.25 in	9 VDC	4400 W 11080 VA	Non Latching	-55 °C	125 °C	75 mA	40 A
CIT Relay and Switch J115F21CH12VDCS61.5	96 Ohms	Through Hole	Class F	110 VDC 277 VAC	Sealed - Fully	15 ms	SPDT (1 Form C)	General Purpose		10 ms	12 VDC	1.2 VDC	Silver Tin Oxide (AgSnO)	PC Pin Quick Connect	0.25 in	9 VDC	5500 W 13850 VA	Non Latching	-55 °C	125 °C	125 mA	50 A
CIT Relay and Switch J115F21C5VDCS.9	28 Ohms	Through Hole	Class F	110 VDC 277 VAC	Sealed - Fully	15 ms	SPDT (1 Form C)	General Purpose	cURus TUV	10 ms	5 VDC	0.5 VDC	Silver Tin Oxide (AgSnO)	PC Pin Quick Connect	0.25 in	3.75 VDC	4400 W 11080 VA	Non Latching	-55 °C	125 °C	178.6 mA	40 A
CIT Relay and Switch J115F21A9VDCS.9	90 Ohms	Through Hole	Class F	110 VDC 277 VAC	Sealed - Fully	15 ms	SPST-NO (1 Form A)	General Purpose	cURus TUV	10 ms	9 VDC	0.9 VDC	Silver Tin Oxide (AgSnO)	PC Pin Quick Connect	0.25 in	6.75 VDC	4400 W 11080 VA	Non Latching	-55 °C	125 °C	100 mA	40 A
CIT Relay and Switch J115F21C24VDCS.9	640 Ohms	Through Hole	Class F	110 VDC 277 VAC	Sealed - Fully	15 ms	SPDT (1 Form C)	General Purpose	cURus TUV	10 ms	24 VDC	2.4 VDC	Silver Tin Oxide (AgSnO)	PC Pin Quick Connect	0.25 in	18 VDC	4400 W 11080 VA	Non Latching	-55 °C	125 °C	37.5 mA	40 A
CIT Relay and Switch J115F21C24VACS	120 Ohms	Through Hole	Class F	110 VDC 277 VAC	Sealed - Fully	15 ms	SPDT (1 Form C)	General Purpose	cURus TUV	10 ms	24 VAC	7.2 VAC	Silver Tin Oxide (AgSnO)	PC Pin Quick Connect	0.25 in	18 VAC	4400 W 11080 VA	Non Latching	-55 °C	125 °C	200 mA	40 A
CIT Relay and Switch J115F21AL220VACS	13.49 kOhms	Through Hole	Class F	110 VDC 277 VAC	Sealed - Fully	15 ms	SPST-NO (1 Form A)	General Purpose	cURus TUV	10 ms	220 VAC/DC	66 VAC	Silver Tin Oxide (AgSnO)	PC Pin Quick Connect	0.25 in	165 VAC	4400 W 11080 VA	Non Latching	-55 °C	125 °C	16.3 mA	40 A
CIT Relay and Switch J115F21CL110VDCS.9	13.445 kOhms	Through Hole	Class F	110 VDC 277 VAC	Sealed - Fully	15 ms	SPDT (1 Form C)	General Purpose	cURus TUV	10 ms	110 VDC	11 VDC	Silver Tin Oxide (AgSnO)	PC Pin Quick Connect	0.25 in	82.5 VDC	4400 W 11080 VA	Non Latching	-55 °C	125 °C	8.2 mA	40 A
CIT Relay and Switch J115F21A9VDCS.6	135 Ohms	Through Hole	Class F	110 VDC 277 VAC	Sealed - Fully	15 ms	SPST-NO (1 Form A)	General Purpose	cURus TUV	10 ms	9 VDC	0.9 VDC	Silver Tin Oxide (AgSnO)	PC Pin Quick Connect	0.25 in	6.75 VDC	4400 W 11080 VA	Non Latching	-55 °C	125 °C	66.7 mA	40 A
CIT Relay and Switch J115F21A24VDCS.6	960 Ohms	Through Hole	Class F	110 VDC 277 VAC	Sealed - Fully	15 ms	SPST-NO (1 Form A)	General Purpose	cURus TUV	10 ms	24 VDC	2.4 VDC	Silver Tin Oxide (AgSnO)	PC Pin Quick Connect	0.25 in	18 VDC	4400 W 11080 VA	Non Latching	-55 °C	125 °C		40 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.94
		10	$ 1.69
		25	$ 1.61
		50	$ 1.54
		100	$ 1.48
		250	$ 1.40
		500	$ 1.35
		1000	$ 1.32

Description

General part information

J115F21 Series

General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole

Documents

Technical documentation and resources

Food & Beverage Switches & Relay

Datasheet
