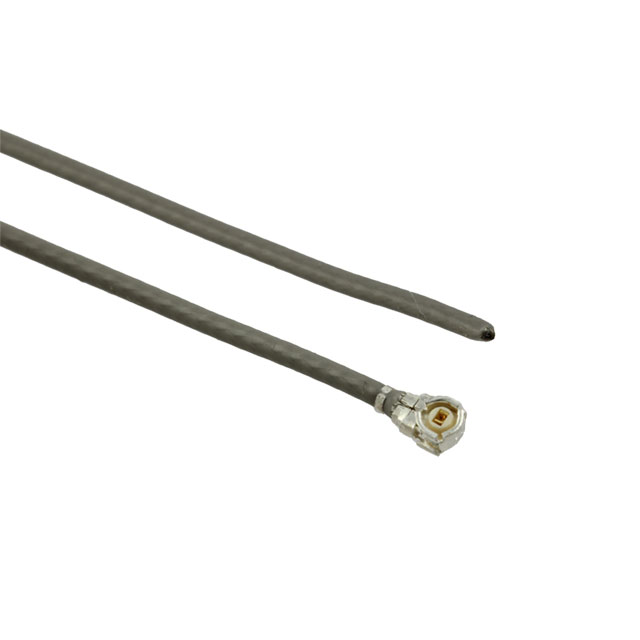

U.FL-LPHF6-066N1-A-1000

Active

Hirose Electric USA, Inc.

CBL ASSY U.FL-CABLE PLUG 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

U.FL-LPHF6-066N1-A-1000

Active

Hirose Electric USA, Inc.

CBL ASSY U.FL-CABLE PLUG 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	U.FL-LPHF6-066N1-A-1000

1st Connector	U.FL (UMCC) Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	Cable (Round)
Cable Impedance	50 Ohms
Cable Type	1.32mm OD Coaxial Cable
Color	Gray
Frequency - Max [Max]	6000 MHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Style	U.FL (UMCC) to Cable

U.FL-LPHF Series

Part	Style	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	1st Contact Gender	Length	Length	1st Connector	Frequency - Max [Max]	2nd Connector	Cable Impedance	Color	1st Connector Mounting Type	Length	Length [x]	Length [x]	Cable Type [diameter]	Overall Impedance
Hirose Electric USA, Inc. U.FL-LPHF6-066N1-A-400	U.FL (UMCC) to Cable	90 °C	-40 °C	1.32mm OD Coaxial Cable	Female	15.75 "	400 mm	U.FL (UMCC) Plug Right Angle	6000 MHz	Cable (Round)	50 Ohms	Gray	Free Hanging (In-Line)
Hirose Electric USA, Inc. U.FL-LPHF6-066N1-A-1000	U.FL (UMCC) to Cable	90 °C	-40 °C	1.32mm OD Coaxial Cable	Female	39.4 in	1 m	U.FL (UMCC) Plug Right Angle	6000 MHz	Cable (Round)	50 Ohms	Gray	Free Hanging (In-Line)	3.3 ft
Hirose Electric USA, Inc. U.FL-LPHF6-068N1T-A-500	U.FL (UMCC) to Cable	90 °C	-40 °C	1.13mm OD Coaxial Cable	Female	19.69 "	50 cm	U.FL (UMCC) Plug Right Angle	6000 MHz	Cable (Round)	50 Ohms	Gray	Free Hanging (In-Line)
Hirose Electric USA, Inc. U.FL-LPHF6-068N2T-A-300	U.FL (UMCC) to Cable	90 °C	-40 °C	1.13mm OD Coaxial Cable	Female			U.FL (UMCC) Plug Right Angle	6000 MHz	Cable (Round)	50 Ohms	Black	Free Hanging (In-Line)		300 mm	11.811 in
Hirose Electric USA, Inc. U.FL-LPHF6-088N2T-A-50	U.FL (UMCC) to Cable	90 °C	-40 °C		Female			U.FL (UMCC) Plug Right Angle	6000 MHz	Cable (Round)	50 Ohms	Black	Free Hanging (In-Line)		50 mm	1.969 in	1.37 mm
Hirose Electric USA, Inc. U.FL-LPHF6-068N2T-A-1000	U.FL (UMCC) to Cable	90 °C	-40 °C	1.13mm OD Coaxial Cable	Female	39.4 in	1 m	U.FL (UMCC) Plug Right Angle	6000 MHz	Cable (Round)	50 Ohms	Black	Free Hanging (In-Line)	3.3 ft
Hirose Electric USA, Inc. U.FL-LPHF6-088N2T-A-700	U.FL (UMCC) to Cable	90 °C	-40 °C		Female			U.FL (UMCC) Plug Right Angle	6000 MHz	Cable (Round)	50 Ohms	Black	Free Hanging (In-Line)		700 mm	27.56 in	1.37 mm
Hirose Electric USA, Inc. U.FL-LPHF6-088N1T-A-80	U.FL (UMCC) to Cable	90 °C	-40 °C		Female	3.15 "	0.08 m	U.FL (UMCC) Plug Right Angle	6000 MHz	Cable (Round)	50 Ohms	Gray	Free Hanging (In-Line)				1.37 mm	50 Ohms
Hirose Electric USA, Inc. U.FL-LPHF6-088N2T-A-500	U.FL (UMCC) to Cable	90 °C	-40 °C		Female	19.69 "	50 cm	U.FL (UMCC) Plug Right Angle	6000 MHz	Cable (Round)	50 Ohms	Black	Free Hanging (In-Line)				1.37 mm
Hirose Electric USA, Inc. U.FL-LPHF6-088N1T-A-140	U.FL (UMCC) to Cable	90 °C	-40 °C		Female			U.FL (UMCC) Plug Right Angle	6000 MHz	Cable (Round)	50 Ohms	Gray	Free Hanging (In-Line)				1.37 mm	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

U.FL-LPHF Series

Cable Assembly Coaxial U.FL (UMCC) to Cable 1.32mm OD Coaxial Cable 39.4" (1.0m) 3.3'
