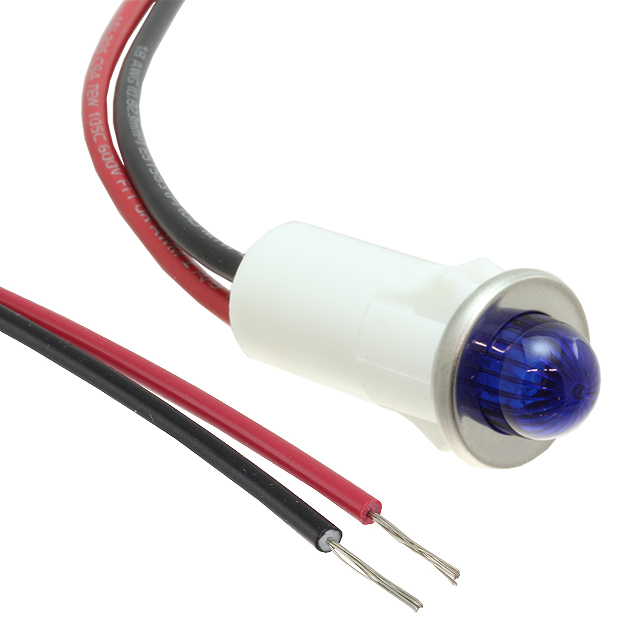

1092M6-12V

Active

Visual Communications Company - VCC

PMI RND .5" LED 12V WIRE SMALL D

Search across all available documentation for this part.

Active

Visual Communications Company - VCC

PMI RND .5" LED 12V WIRE SMALL D

Technical Specifications

Parameters and characteristics for this part

Part	Millicandela Rating	Ratings	Panel Cutout Dimensions	Panel Cutout Dimensions	Voltage	Lens Style	Lamp Color	Lens Transparency	Termination Style	Termination Style	Termination Style	Type	Current	Panel Cutout Shape	Lens Color	Wavelength - Peak	Lens Size	Lens Size
Visual Communications Company - VCC 1092M6-12V	3200 mcd	DC	12.7 mm	0.5 in	12 V	Round with Domed Top	Blue	Clear	4.6 in	116.84 mm	Wire Leads	LED	25 mA	Round	Blue
Visual Communications Company - VCC 1092M2-28V	7000 mcd	AC/DC	12.7 mm	0.5 in	28 V	Round with Domed Top	Clear	Clear			Wire Leads - 4.8" (121.92mm)	LED	25 mA	Round	Colorless	468 nm	T-1 3/4	5 mm
Visual Communications Company - VCC 1092M6-28V	3200 mcd	DC	12.7 mm	0.5 in	28 V	Round with Domed Top	Blue	Clear	4.6 in	116.84 mm	Wire Leads	LED	25 mA	Round	Blue
Visual Communications Company - VCC 1092M3-12V	13000 mcd	DC	12.7 mm	0.5 in	12 V	Round with Domed Top	Amber	Diffused	4.6 in	116.84 mm	Wire Leads	LED	25 mA	Round	Amber
Visual Communications Company - VCC 1092M1-125VAC	13000 mcd	AC	12.7 mm	0.5 in	125 V	Round with Domed Top	Red	Diffused	4.6 in	116.84 mm	Wire Leads	LED	25 mA	Round	Red
Visual Communications Company - VCC 1092M1-12V	13000 mcd	DC	12.7 mm	0.5 in	12 V	Round with Domed Top	Red	Diffused	4.6 in	116.84 mm	Wire Leads	LED	25 mA	Round	Red
Visual Communications Company - VCC 1092M2-125VAC	7000 mcd	AC	12.7 mm	0.5 in	125 V	Round with Domed Top	Clear	Clear			Wire Leads - 4.8" (121.92mm)	LED	25 mA	Round	Colorless	468 nm	T-1 3/4	5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	200	$ 3.72

General part information

LED Panel Indicator Blue Clear 12V 25mA Wire Leads - 4.6" (116.84mm)
