A-BL200DG76-022-KSR1

Active

Assmann WSW Components

FEMALE HEADER, STAMPED PIN, 2.00

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

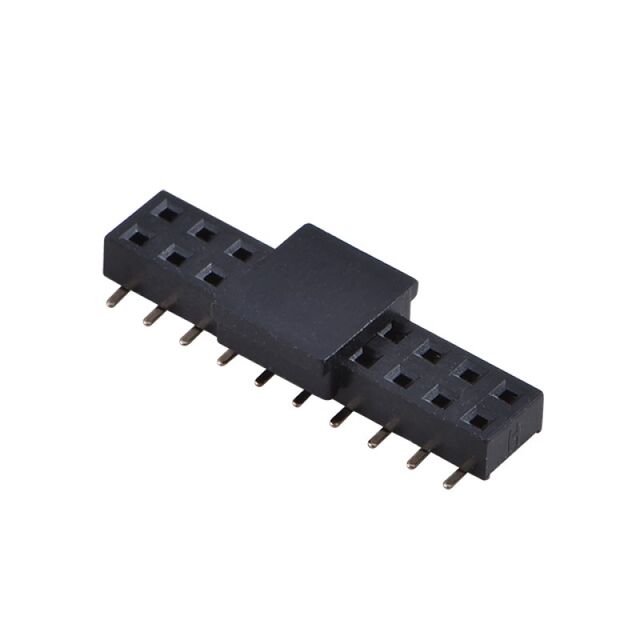

A-BL200DG76-022-KSR1

Active

Assmann WSW Components

FEMALE HEADER, STAMPED PIN, 2.00

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A-BL200DG76-022-KSR1

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.096 "
Insulation Height	2.44 mm
Insulation Material	Polyamide (PA9T), Nylon 9T, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	76
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

A-BL200-DG Series

...

Part	Material Flammability Rating	Insulation Material	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Type	Fastening Type	Insulation Height	Insulation Height	Mounting Type	Insulation Color	Contact Material	Current Rating (Amps)	Termination	Contact Shape	Number of Positions	Insulation Height [custom]	Insulation Height [custom]	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Assmann WSW Components A-BL200-DG-Z58MP1	UL94 V-0	Glass Filled Nylon 6T Polyamide (PA6T)	Receptacle	0.079 in	2 mm	0.079 in	2 mm	2	All	105 ░C	-55 °C	Pick and Place	Female Socket	Push-Pull	4.6 mm	0.181 in	Surface Mount	Black	Phosphor Bronze	3 A	Solder	Square	58
Assmann WSW Components A-BL200-DG-G32D	UL94 V-0	Glass Filled Nylon 6T Polyamide (PA6T)	Receptacle	0.079 in	2 mm	0.079 in	2 mm	2	All	105 ░C	-40 °C		Female Socket	Push-Pull			Through Hole	Black	Phosphor Bronze	3 A	Solder	Square		0.157 in	4 mm	Gold	0.11 in	2.79 mm	Flash
Assmann WSW Components A-BL200DG76-022-KSR1	UL94 V-0	Polyamide (PA9T) Nylon 9T Glass Filled	Receptacle	0.079 in	2 mm	0.079 in	2 mm	2	All	105 ░C	-55 °C	Pick and Place	Female Socket	Push-Pull	2.44 mm	0.096 "	Surface Mount	Black	Phosphor Bronze	2 A	Solder	Square	76			Gold			Flash	Flash	Gold
Assmann WSW Components A-BL200-DG-Z56MP1	UL94 V-0	Glass Filled Nylon 6T Polyamide (PA6T)	Receptacle	0.079 in	2 mm	0.079 in	2 mm	2	All	105 ░C	-55 °C	Pick and Place	Female Socket	Push-Pull	4.6 mm	0.181 in	Surface Mount	Black	Phosphor Bronze	3 A	Solder	Square	56
Assmann WSW Components A-BL200-DG-G70D	UL94 V-0	Glass Filled Nylon 6T Polyamide (PA6T)	Receptacle	0.079 in	2 mm	0.079 in	2 mm	2	All	105 ░C	-40 °C		Female Socket	Push-Pull			Through Hole	Black	Phosphor Bronze	3 A	Solder	Square	70	0.157 in	4 mm	Gold	0.11 in	2.79 mm	Flash
Assmann WSW Components A-BL200-DG-Z36MP1	UL94 V-0	Glass Filled Nylon 6T Polyamide (PA6T)	Receptacle	0.079 in	2 mm	0.079 in	2 mm	2	All	105 ░C	-55 °C	Pick and Place	Female Socket	Push-Pull	4.6 mm	0.181 in	Surface Mount	Black	Phosphor Bronze	3 A	Solder	Square	36
Assmann WSW Components A-BL200-DG-G22D	UL94 V-0	Glass Filled Nylon 6T Polyamide (PA6T)	Receptacle	0.079 in	2 mm	0.079 in	2 mm	2	All	105 ░C	-40 °C		Female Socket	Push-Pull			Through Hole	Black	Phosphor Bronze	3 A	Solder	Square	22 positions	0.157 in	4 mm	Gold	0.11 in	2.79 mm	Flash
Assmann WSW Components A-BL200-DG-G58MP1	UL94 V-0	Glass Filled Nylon 6T Polyamide (PA6T)	Receptacle	0.079 in	2 mm	0.079 in	2 mm	2	All	105 ░C	-55 °C	Pick and Place	Female Socket	Push-Pull	4.6 mm	0.181 in	Surface Mount	Black	Phosphor Bronze	3 A	Solder	Square	58			Gold						1 µm	39.4 µin
Assmann WSW Components A-BL200-DG-Z10MR1	UL94 V-0	Glass Filled Nylon 6T Polyamide (PA6T)	Receptacle	0.079 in	2 mm	0.079 in	2 mm	2	All	105 ░C	-55 °C	Pick and Place	Female Socket	Push-Pull	4.6 mm	0.181 in	Surface Mount	Black	Phosphor Bronze	3 A	Solder	Square	10
Assmann WSW Components A-BL200-DG-G32MP1	UL94 V-0	Glass Filled Nylon 6T Polyamide (PA6T)	Receptacle	0.079 in	2 mm	0.079 in	2 mm	2	All	105 ░C	-55 °C	Pick and Place	Female Socket	Push-Pull	4.6 mm	0.181 in	Surface Mount	Black	Phosphor Bronze	3 A	Solder	Square				Gold						1 µm	39.4 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5200	$ 2.76

Description

General part information

A-BL200-DG Series

76 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
