FE1Q-115-060-01

Obsolete

ebm-papst Inc.

BLOWER

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

BLOWER

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Voltage - Rated	Material - Frame	Fan Type	Operating Temperature	Operating Temperature	Air Flow	Air Flow	Noise	Bearing Type	Size / Dimension [z]	Size / Dimension [x]	Features	Material - Blade	Width [y]	Termination	Power (Watts)
ebm-papst Inc. FE1Q-115-060-01	CE UL	115 VAC	Aluminum	Blower Cross Flow	60 °C	60 °C	215 CFM	6.02 mł/min	55 dB	Ball	163 mm	500 mm	Capacitor	Aluminum	88 mm	Terminal Block	32 W
ebm-papst Inc. FE1Q-230-060-04	CE UL	230 VAC	Aluminum	Blower Cross Flow	60 °C	60 °C	200 CFM	5.6 mł/min	56 dB	Ball	163 mm	471 mm	Capacitor	Aluminum	88 mm	Terminal Block	38 W
ebm-papst Inc. FE1Q-230-060-03	CE UL	230 VAC	Aluminum	Blower Cross Flow	60 °C	60 °C	200 CFM	5.6 mł/min	56 dB	Ball	163 mm	471 mm	Capacitor	Aluminum	88 mm	Terminal Block	38 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 465.76

General part information

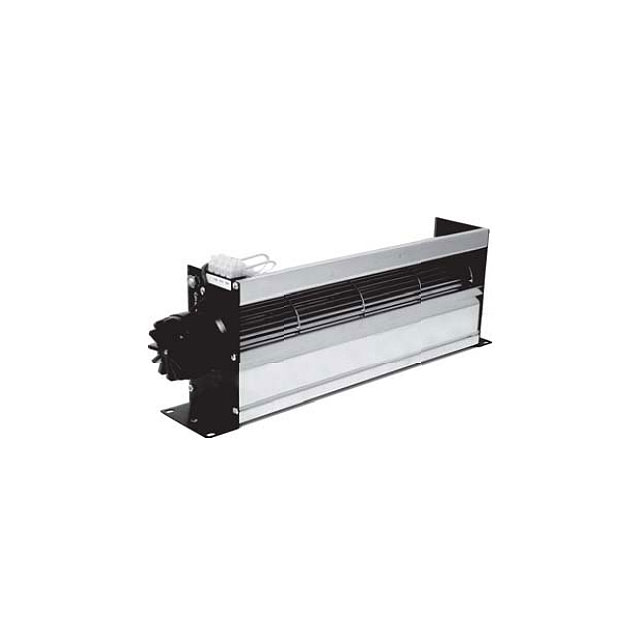

Fan Blower, Cross Flow 115VAC Rectangular - 500mm L x 163mm H Ball 215.0 CFM (6.02m³/min) Terminal Block

Technical documentation and resources

No documents available
