09100000400

Active

HARTING Technology Group

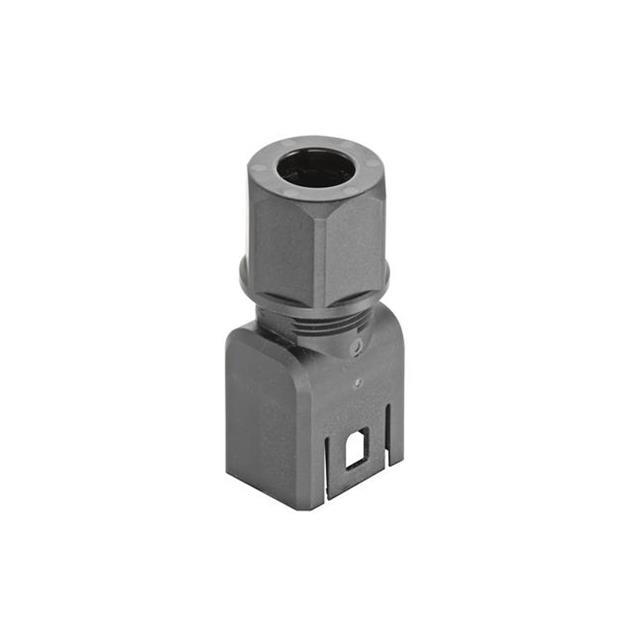

RECTANGULAR HOOD, SIZE 1A, POLYAMIDE

Search across all available documentation for this part.

Active

HARTING Technology Group

RECTANGULAR HOOD, SIZE 1A, POLYAMIDE

Technical Specifications

Parameters and characteristics for this part

Specification	09100000400

Connector Type	Hood
Housing Color	Black
Housing Material	Polyamide (PA), Nylon
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Size	1 A
Size / Dimension [x]	20.3 mm
Size / Dimension [x]	0.799 in
Size / Dimension [y]	16.3 mm
Size / Dimension [y]	0.642 in
Size / Dimension [z]	1.85 in
Size / Dimension [z]	47 mm
Style	Top Entry

Part	Operating Temperature [Min]	Operating Temperature [Max]	Style	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Housing Color	Ingress Protection	Connector Type	Housing Material	Lock Location	Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
HARTING Technology Group 09100000300	-30 ░C	90 °C	Bottom Entry	0.795 "	1.354 in	20.2 mm	1.016 in	34.4 mm	25.8 mm	Black	IP65 - Dust Tight Water Resistant	Base - Panel Mount	Polyamide (PA) Nylon	Screw Locks on Hood	1 A
HARTING Technology Group 09100000800	-30 ░C	90 °C	Bottom Entry	0.898 in	1.354 in	22.8 mm	1.016 in	34.4 mm	25.8 mm	Black	IP65 - Dust Tight Water Resistant	Base - Panel Mount 90°	Polyamide (PA) Nylon	Screw Locks on Hood	1 A
HARTING Technology Group 09100000400	-30 ░C	90 °C	Top Entry			1.85 in		0.799 in	0.642 in	Black	IP65 - Dust Tight Water Resistant	Hood	Polyamide (PA) Nylon	Locking Clip (1) on Base Bottom	1 A	20.3 mm	47 mm	16.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry 1A IP65 - Dust Tight, Water Resistant
