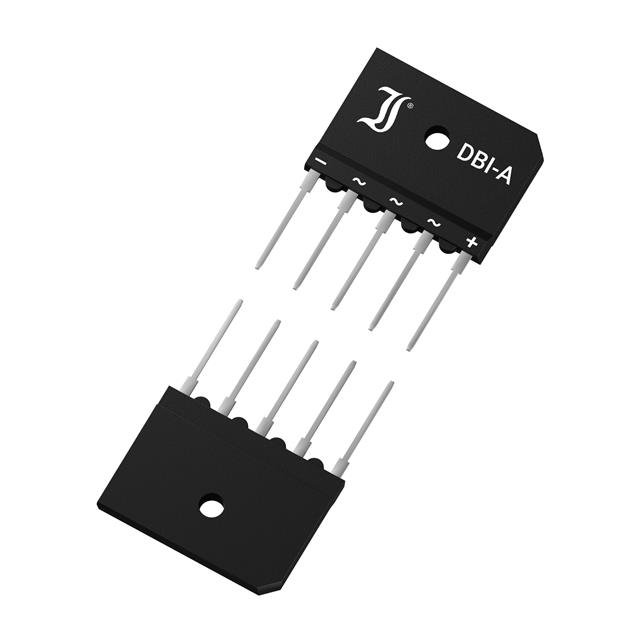

DBI25-08A

Active

Diotec Semiconductor

BRIDGE RECT 3PHASE 800V 40A DBI

Search across all available documentation for this part.

Active

Diotec Semiconductor

BRIDGE RECT 3PHASE 800V 40A DBI

Technical Specifications

Parameters and characteristics for this part

Specification	DBI25-08A

Current - Average Rectified (Io)	40 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Three Phase
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-50 °C
Package / Case	5-SIP
Supplier Device Package	DBI
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.05 V
Voltage - Peak Reverse (Max) [Max]	800 V

Part	Mounting Type	Voltage - Peak Reverse (Max) [Max]	Technology	Current - Reverse Leakage @ Vr	Package / Case	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Current - Average Rectified (Io)	Diode Type	Operating Temperature [Min]	Operating Temperature [Max]
Diotec Semiconductor DBI25-08A	Through Hole	800 V	Standard	5 µA	5-SIP	1.05 V	DBI	40 A	Three Phase	-50 °C	175 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Three Phase Standard 800 V Through Hole DBI
