Q-0901S0008018i

Active

Amphenol Custom Cable

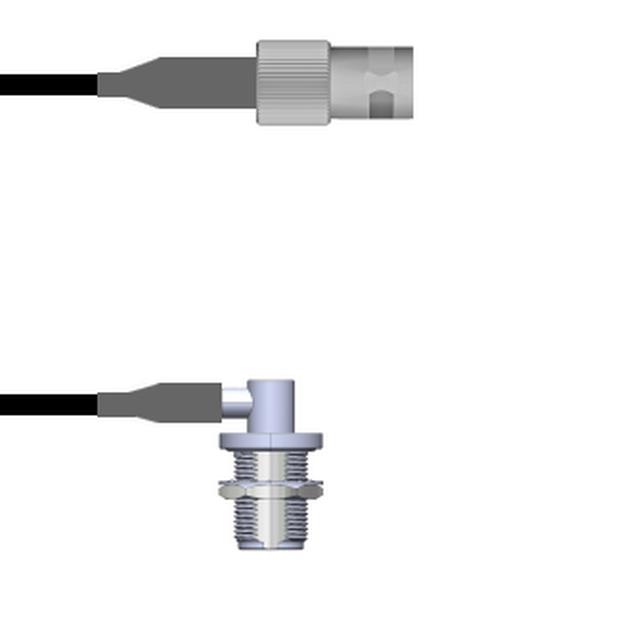

COAX CBL BNC TO N-TYPE 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0901S0008018i

Active

Amphenol Custom Cable

COAX CBL BNC TO N-TYPE 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0901S0008018i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0901S0 Series

Part	1st Connector Mounting Type	Style	2nd Contact Gender	2nd Connector	Color	Length [x]	Length [x]	1st Connector	Features	2nd Connector Mounting Type	2nd Connector Mounting Feature	Frequency - Max [Max]	Cable Type	1st Contact Gender	Overall Impedance	Length	Length	Length
Amphenol Custom Cable Q-0901S0008018i	Free Hanging (In-Line)	BNC to N-Type	Female	N-Type Jack Right Angle	Black	457.2 mm	457.2 mm	BNC Jack	Shielded	Panel Mount	Bulkhead - Front Side Nut	4 GHz	RG-58	Female	50 Ohms
Amphenol Custom Cable Q-0901S0008108i	Free Hanging (In-Line)	BNC to N-Type	Female	N-Type Jack Right Angle	Black			BNC Jack	Shielded	Panel Mount	Bulkhead - Front Side Nut	4 GHz	RG-58	Female	50 Ohms	2.7 m	9 ft	108 in
Amphenol Custom Cable Q-0901S0008009i	Free Hanging (In-Line)	BNC to N-Type	Female	N-Type Jack Right Angle	Black			BNC Jack	Shielded	Panel Mount	Bulkhead - Front Side Nut	4 GHz	RG-58	Female	50 Ohms	228.6 mm		9 "
Amphenol Custom Cable Q-0901S00082.5M	Free Hanging (In-Line)	BNC to N-Type	Female	N-Type Jack Right Angle	Black			BNC Jack	Shielded	Panel Mount	Bulkhead - Front Side Nut	4 GHz	RG-58	Female	50 Ohms	2.5 m	8.2 '	98.4 in
Amphenol Custom Cable Q-0901S00081.5M	Free Hanging (In-Line)	BNC to N-Type	Female	N-Type Jack Right Angle	Black			BNC Jack	Shielded	Panel Mount	Bulkhead - Front Side Nut	4 GHz	RG-58	Female	50 Ohms	1.5 m	4.9 ft	59.1 in
Amphenol Custom Cable Q-0901S0008072i	Free Hanging (In-Line)	BNC to N-Type	Female	N-Type Jack Right Angle	Black			BNC Jack	Shielded	Panel Mount	Bulkhead - Front Side Nut	4 GHz	RG-58	Female	50 Ohms	1.8 m	6 ft	72 in
Amphenol Custom Cable Q-0901S0008060i	Free Hanging (In-Line)	BNC to N-Type	Female	N-Type Jack Right Angle	Black			BNC Jack	Shielded	Panel Mount	Bulkhead - Front Side Nut	4 GHz	RG-58	Female	50 Ohms	1.5 m	5 ft	5 '
Amphenol Custom Cable Q-0901S0008048i	Free Hanging (In-Line)	BNC to N-Type	Female	N-Type Jack Right Angle	Black			BNC Jack	Shielded	Panel Mount	Bulkhead - Front Side Nut	4 GHz	RG-58	Female	50 Ohms	1200 mm	4 ft	48 in
Amphenol Custom Cable Q-0901S0008003M	Free Hanging (In-Line)	BNC to N-Type	Female	N-Type Jack Right Angle	Black			BNC Jack	Shielded	Panel Mount	Bulkhead - Front Side Nut	4 GHz	RG-58	Female	50 Ohms	3 m	9.8 '	118.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 108.11
		25	$ 106.05
		50	$ 103.99
		100	$ 101.94
		250	$ 99.88

Description

General part information

Q-0901S0 Series

Cable Assembly Coaxial BNC to N-Type RG-58 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
