Q-7201W00082.5M

Active

Amphenol Custom Cable

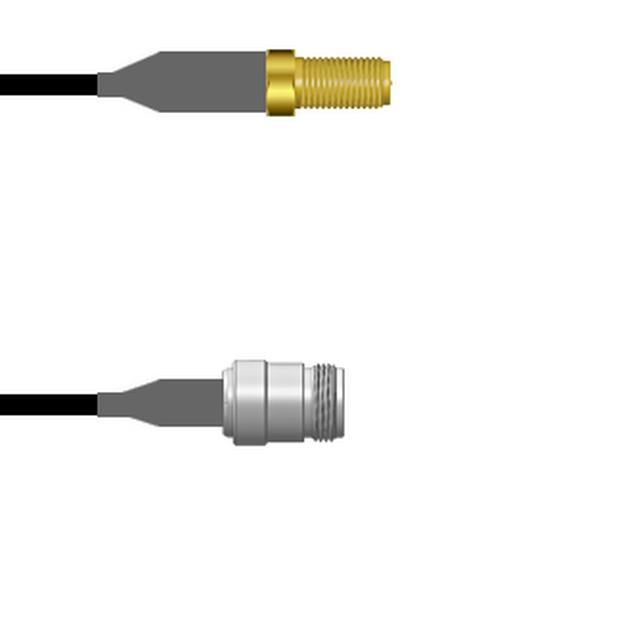

CBL ASSY RPSMA-NTYPE JK-JK 8.2'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY RPSMA-NTYPE JK-JK 8.2'

Technical Specifications

Parameters and characteristics for this part

Part	1st Connector Mounting Type	Cable Impedance	Connector Impedance	Color	Frequency - Max [Max]	Cable Type	2nd Connector	Style	Overall Impedance	2nd Contact Gender	Features	1st Connector	1st Contact Gender	2nd Connector Mounting Type	Length	Length	Length
Amphenol Custom Cable Q-7201W00082.5M	Free Hanging (In-Line)	50 Ohms	50 Ohms	Black	1 GHz	RG-58	N-Type Jack	RP-SMA to N-Type	50 Ohms	Female	Shielded	RP-SMA Jack	Male	Free Hanging (In-Line)	8.2 '	98.4 in	2.5 m
Amphenol Custom Cable Q-7201W00081.5M	Free Hanging (In-Line)	50 Ohms	50 Ohms	Black	1 GHz	RG-58	N-Type Jack	RP-SMA to N-Type	50 Ohms	Female	Shielded	RP-SMA Jack	Male	Free Hanging (In-Line)	4.9 ft	59.1 in	1.5 m
Amphenol Custom Cable Q-7201W0008002M	Free Hanging (In-Line)	50 Ohms	50 Ohms	Black	1 GHz	RG-58	N-Type Jack	RP-SMA to N-Type	50 Ohms	Female	Shielded	RP-SMA Jack	Male	Free Hanging (In-Line)	6.6 ft	78.7 in	2 m
Amphenol Custom Cable Q-7201W0008003M	Free Hanging (In-Line)	50 Ohms	50 Ohms	Black	1 GHz	RG-58	N-Type Jack	RP-SMA to N-Type	50 Ohms	Female	Shielded	RP-SMA Jack	Male	Free Hanging (In-Line)	9.8 '	118.1 in	3 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial RP-SMA to N-Type RG-58 98.4" (2.5m) 8.2'

Technical documentation and resources

No documents available
