T4073014031-001
ActiveTE Connectivity Raychem Cable Protection

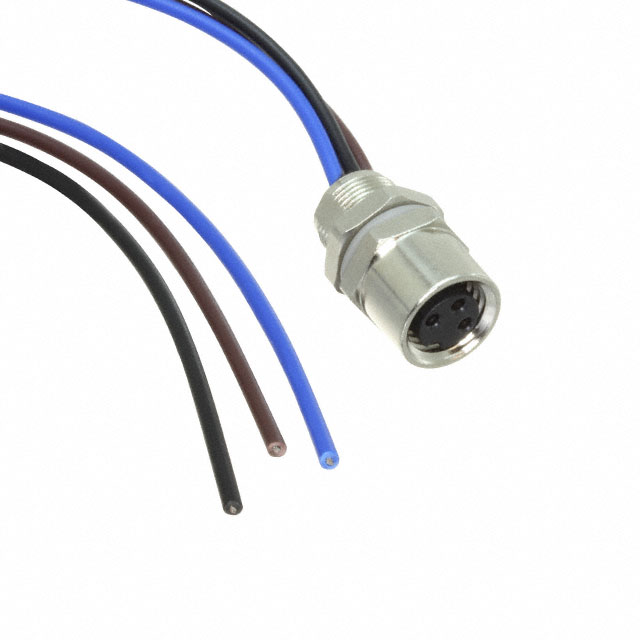

CBL CIRC 3POS FEM TO WIRE 0.66'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4073014031-001
ActiveTE Connectivity Raychem Cable Protection
CBL CIRC 3POS FEM TO WIRE 0.66'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T4073014031-001 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Panel Mount |
| 1st Connector Number of Positions | 3 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M8 |
| 1st Connector Type | Receptacle |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Type | Individual |
| Color | Multiple |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Length | 200 mm |
| Length [x] | 0.66 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 8.81 | |
| 10 | $ 7.68 | |||
| 25 | $ 7.47 | |||
| 50 | $ 7.27 | |||
| 100 | $ 6.83 | |||
| 250 | $ 6.79 | |||
| 500 | $ 6.38 | |||
| 1000 | $ 5.70 | |||
Description
General part information
T40730 Series
Circular Cable Assembly Unshielded 0.66' (200.00mm)
