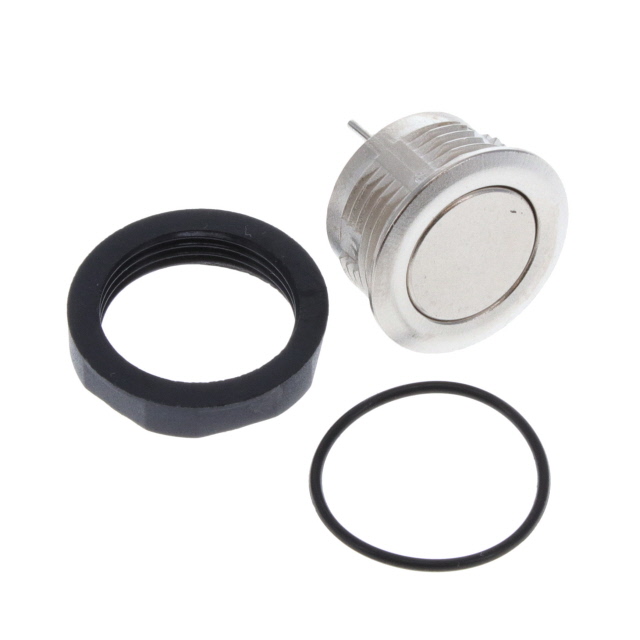

MCS-16-NO00A08-Z0NCZ0NCWF-00000000-P0000-S

Active

SCHURTER Inc.

MCS 16, METAL SWITCH SHORT STROK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MCS-16-NO00A08-Z0NCZ0NCWF-00000000-P0000-S

Active

SCHURTER Inc.

MCS 16, METAL SWITCH SHORT STROK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MCS-16-NO00A08-Z0NCZ0NCWF-00000000-P0000-S

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	80 mA
Electrical Life	1000000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16.1 mm
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Anti-Vandal
Voltage Rating - DC	24 V

MCS-16-NO Series

Part	Mechanical Life	Voltage Rating - DC	Circuit	Actuator Type	Type	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Ingress Protection	Actuator Marking	Termination Style	Mounting Type	Color - Actuator/Cap	Features	Illumination Type, Color	Illumination Voltage (Nominal)
SCHURTER Inc. MCS-16-NO00A08-Z0NCZ0NCWF-00000000-P0000-S	1000000 Cycles	24 V	SPST-NO	Button Flush Round	Anti-Vandal	16.1 mm	80 mA	Off-Mom	-20 C	60 °C	1000000 Cycles	IP67 - Dust Tight Waterproof	No Marking	PC Pin	Panel Mount Front	Silver
SCHURTER Inc. MCS-16-NO00A12-Z0NCS3NCWF-00000000-S0000-S	1000000 Cycles	48 V	SPST-NO	Button Flush Round	Anti-Vandal	16.1 mm	125 mA	Off-Mom	-20 C	60 °C	1000000 Cycles	IP67 - Dust Tight Waterproof	No Marking	Solder Lug	Panel Mount Front	Silver	Stainless Steel
SCHURTER Inc. MCS-16-NO00A12-Z0NCS3NCWF-PI0RG00R-S0000-S	1000000 Cycles	48 V	SPST-NO	Button Flush Round	Anti-Vandal Illuminated	16.1 mm	125 mA	Off-Mom	-20 C	60 °C	1000000 Cycles	IP67 - Dust Tight Waterproof	No Marking	Solder Lug	Panel Mount Front	Silver	Stainless Steel	Green/Red LED	2 VDC
SCHURTER Inc. MCS-16-NO00A12-Z0NCZ0NCWF-00000000-S0000-S	1000000 Cycles	48 V	SPST-NO	Button Flush Round	Anti-Vandal	16.1 mm	125 mA	Off-Mom	-20 C	60 °C	1000000 Cycles	IP67 - Dust Tight Waterproof	No Marking	Solder Lug	Panel Mount Front	Silver
SCHURTER Inc. MCS-16-NO00A12-Z0NCZ0NCWF-PI0RG00R-S0000-S	1000000 Cycles	48 V	SPST-NO	Button Flush Round	Anti-Vandal Illuminated	16.1 mm	125 mA	Off-Mom	-20 C	60 °C	1000000 Cycles	IP67 - Dust Tight Waterproof	No Marking	Solder Lug	Panel Mount Front	Silver		Green/Red LED	2 VDC
SCHURTER Inc. MCS-16-NO00A12-Z0NCZ0NCWF-00000000-P0000-S	1000000 Cycles	48 V	SPST-NO	Button Flush Round	Anti-Vandal	16.1 mm	125 mA	Off-Mom	-20 C	60 °C	1000000 Cycles	IP67 - Dust Tight Waterproof	No Marking	PC Pin	Panel Mount Front	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.37
		10	$ 7.22
		25	$ 6.81
		50	$ 6.51
		100	$ 6.23
		250	$ 5.87
		500	$ 5.61
		1000	$ 5.37

Description

General part information

MCS-16-NO Series

Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front
