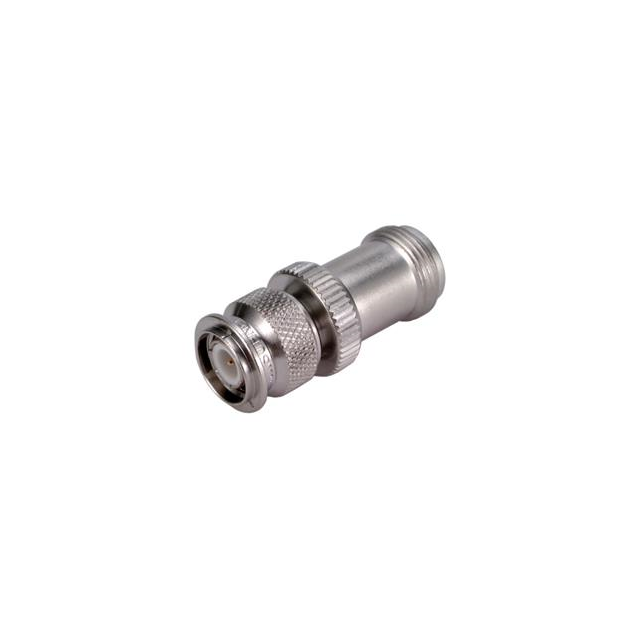

33_TNC-N-50-1/133_UE

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

33_TNC-N-50-1/133_UE

Technical Specifications

Parameters and characteristics for this part

Specification	33_TNC-N-50-1/133_UE

Adapter Series	N to TNC
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	TNC Plug, Male Pin
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Body Material	Adapter Series	Center Contact Plating	Convert To (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Mating Cycles	Convert From (Adapter End)	Style	Adapter Type	Frequency - Max [Max]	Impedance	Body Finish	Center Contact Material	Mounting Type	Conversion Type
Huber+Suhner, Inc. 33_TNC-N-50-1/133_UE	Brass	N to TNC	Gold	Male Pin TNC Plug	-65 ░C	165 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	500	Female Socket N Jack	Straight	Plug to Jack	11 GHz	50 Ohms	White Bronze	Beryllium Copper	Free Hanging (In-Line)	Between Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To TNC Plug, Male Pin 50 Ohms
