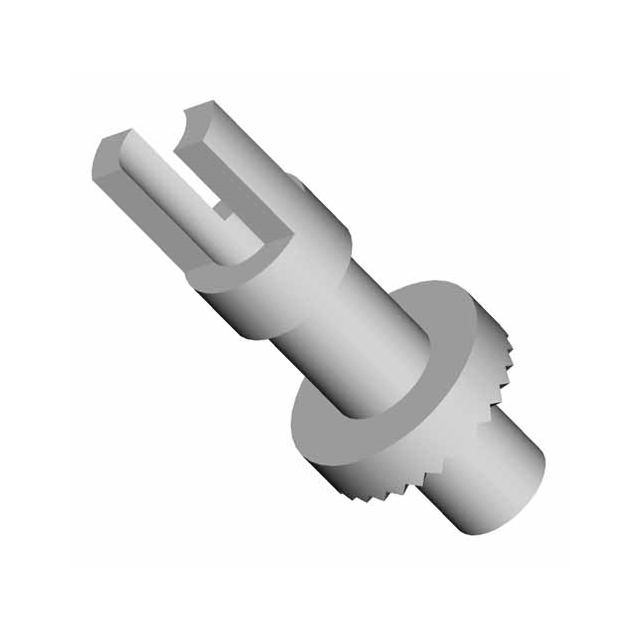

H2032-01

Obsolete

Harwin Inc.

TERM TURRET HOLLOW L=9.53MM TIN

Search across all available documentation for this part.

Obsolete

Harwin Inc.

TERM TURRET HOLLOW L=9.53MM TIN

Technical Specifications

Parameters and characteristics for this part

Specification	H2032-01

Board Thickness	1.6 mm
Board Thickness	0.063 in
Contact Finish	Tin
Contact Material	Brass Alloy
Diameter - Turret Head [diameter]	0.12 in, 0.125 in
Diameter - Turret Head [diameter]	3.18 mm, 3.05 mm
Flange Diameter [diameter]	0.187 in
Flange Diameter [diameter]	4.75 mm
Insulation	Non-Insulated
Length - Above Board	9.53 mm
Length - Above Board	0.375 in
Length - Below Flange [Max] [x]	0.099 in
Length - Below Flange [Max] [x]	2.51 mm
Length - Below Flange [Min] [x]	2.39 mm
Length - Below Flange [Min] [x]	0.094 in
Length - Overall	11.9 mm
Length - Overall [x]	0.469 in
Mounting Hole Diameter [Max] [diameter]	2.46 mm
Mounting Hole Diameter [Max] [diameter]	0.097 in
Mounting Hole Diameter [Min] [diameter]	0.094 in
Mounting Hole Diameter [Min] [diameter]	2.39 mm
Mounting Type	Through Hole
Number of Turrets	Single
Staking Side ID [Max]	0.07 in
Staking Side ID [Max]	1.78 mm
Staking Side ID [Min]	0.067 in
Staking Side ID [Min]	1.7 mm
Staking Side OD [Max] [diameter]	2.39 mm
Staking Side OD [Max] [diameter]	0.094 "
Staking Side OD [Min] [diameter]	0.091 "
Staking Side OD [Min] [diameter]	2.31 mm
Terminal Type	Fork, Single End, Hollow
Termination	Swage

Part	Staking Side ID [Max]	Staking Side ID [Min]	Staking Side ID [Max]	Staking Side ID [Min]	Length - Below Flange [Max] [x]	Length - Below Flange [Max] [x]	Length - Below Flange [Min] [x]	Length - Below Flange [Min] [x]	Mounting Type	Board Thickness	Board Thickness	Insulation	Terminal Type	Diameter - Turret Head [diameter]	Diameter - Turret Head [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Min] [diameter]	Contact Material	Contact Finish	Length - Above Board	Length - Above Board	Length - Overall	Length - Overall [x]	Staking Side OD [Max] [diameter]	Staking Side OD [Min] [diameter]	Staking Side OD [Max] [diameter]	Staking Side OD [Min] [diameter]	Termination	Number of Turrets
Harwin Inc. H2032-01	0.07 in	0.067 in	1.78 mm	1.7 mm	0.099 in	2.51 mm	2.39 mm	0.094 in	Through Hole	1.6 mm	0.063 in	Non-Insulated	Fork Hollow Single End	0.12 in 0.125 in	3.05 mm 3.18 mm	0.187 in	4.75 mm	0.094 in	2.46 mm	0.097 in	2.39 mm	Brass Alloy	Tin	9.53 mm	0.375 in	11.9 mm	0.469 in	2.39 mm	0.091 "	0.094 "	2.31 mm	Swage	Single

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Terminal Turret Connector Single End, Fork, Hollow 0.375" (9.53mm) Tin
