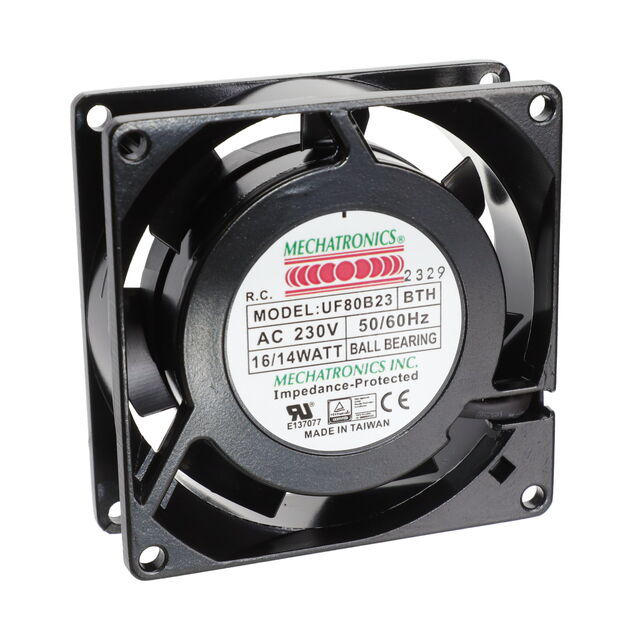

UF80B23-BTHR

Active

Mechatronics Bearing Group

FAN AXIAL 80X25MM 230VAC TERM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC Axial Part Numbering Guide Datasheet

UF80B23-BTHR

Active

Mechatronics Bearing Group

FAN AXIAL 80X25MM 230VAC TERM

Deep-Dive with AI

DocumentsAC Axial Part Numbering Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UF80B23-BTHR

Air Flow	24 CFM
Air Flow	0.672 mł/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	70 mA
Fan Type	Tubeaxial
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	35 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	14 Watts
RPM	3100 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	0.22 in H2O
Static Pressure	54.8 Pa
Termination	2 Terminals
Voltage - Rated	230 VAC
Weight	0.617 lb
Weight	279.87 g
Width [y]	25 mm

UF80B Series

Part	Width [y]	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Approval Agency	Static Pressure	Static Pressure	RPM	Material - Frame	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Air Flow	Material - Blade	Bearing Type	Power (Watts)	Noise	Weight	Weight	Termination	Voltage - Rated [Max]	Voltage - Rated [Min]	Features
Mechatronics Bearing Group UF80B23-BTHR	25 mm	70 mA	80 mm	80 mm	230 VAC	CE cUL TUV UL	0.22 in H2O	54.8 Pa	3100 RPM	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	24 CFM	0.672 mł/min	Polybutylene Terephthalate (PBT)	Ball	14 Watts	35 dB	0.617 lb	279.87 g	2 Terminals
Mechatronics Bearing Group UF80B12-BWHR	25 mm	120 mA	80 mm	80 mm	115 VAC	CE cUL TUV UL	0.22 in H2O	54.8 Pa	3100 RPM	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	24 CFM	0.672 mł/min	Polybutylene Terephthalate (PBT)	Ball	11 W	35 dB	0.617 lb	279.87 g	2 Wire Leads
Mechatronics Bearing Group UF80B12/23-BWHR	25 mm		80 mm	80 mm		CE cUL TUV UL				Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C			Polybutylene Terephthalate (PBT)	Ball			0.617 lb	279.87 g	2 Wire Leads	230 VAC	115 VAC	Dual Voltage
Mechatronics Bearing Group UF80B12-BTLR	25 mm	120 mA	80 mm	80 mm	115 VAC	CE cUL TUV UL	0.14 in H2O	34.9 Pa	2400 RPM	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	18 CFM	0.504 m³/min	Polybutylene Terephthalate (PBT)	Ball	11 W	31 dB(A)	0.617 lb	279.87 g	2 Terminals
Mechatronics Bearing Group UF80B12-BWLR	25 mm	120 mA	80 mm	80 mm	115 VAC	CE cUL TUV UL	0.14 in H2O	34.9 Pa	2400 RPM	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	18 CFM	0.504 m³/min	Polybutylene Terephthalate (PBT)	Ball	11 W	31 dB(A)	0.617 lb	279.87 g	2 Wire Leads
Mechatronics Bearing Group UF80B23-BTLR	25 mm	60 mA	80 mm	80 mm	230 VAC	CE cUL TUV UL	0.14 in H2O	34.9 Pa	2400 RPM	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	18 CFM	0.504 m³/min	Polybutylene Terephthalate (PBT)	Ball	14 Watts	31 dB(A)	0.617 lb	279.87 g	2 Terminals
Mechatronics Bearing Group UF80B23-SWHR	25 mm	70 mA	80 mm	80 mm	230 VAC	CE cUL TUV UL	0.22 in H2O	54.8 Pa	3100 RPM	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	24 CFM	0.672 mł/min	Polybutylene Terephthalate (PBT)	Sleeve	14 Watts	35 dB	0.617 lb	279.87 g	2 Wire Leads
Mechatronics Bearing Group UF80B02-SWH	25 mm		80 mm	80 mm		CE				Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C			Polybutylene Terephthalate (PBT)	Sleeve					2 Wire Leads
Mechatronics Bearing Group UF80B12-BTHR	25 mm	120 mA	80 mm	80 mm	115 VAC	CE cUL TUV UL	0.22 in H2O	54.8 Pa	3100 RPM		Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	24 CFM	0.672 mł/min	Polybutylene Terephthalate (PBT)	Ball	11 W	35 dB			2 Terminals
Mechatronics Bearing Group UF80B12-STHR	25 mm	120 mA	80 mm	80 mm	115 VAC	CE cUL TUV UL	0.22 in H2O	54.8 Pa	3100 RPM	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	24 CFM	0.672 mł/min	Polybutylene Terephthalate (PBT)	Sleeve	11 W	35 dB	0.617 lb	279.87 g	2 Terminals

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.64
		10	$ 18.40
		25	$ 17.58
		50	$ 16.98
		100	$ 16.41
		250	$ 15.67

Description

General part information

UF80B Series

Fan Tubeaxial 230VAC Square - 80mm L x 80mm H Ball 24.0 CFM (0.672m³/min) 2 Terminals

Documents

Technical documentation and resources

AC Axial Part Numbering Guide

Datasheet
