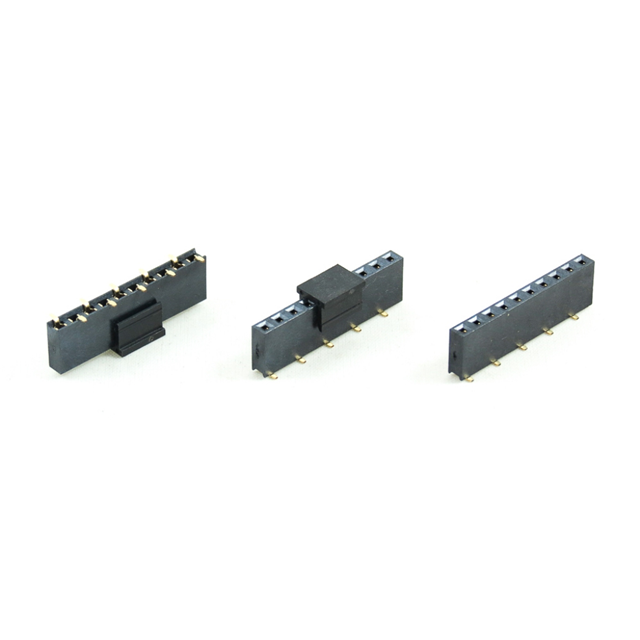

2043-2X12G00DNT-P

Active

Oupiin

BOARD CONNECTOR, 24 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, SOCKET,

Deep-Dive with AI

Search across all available documentation for this part.

2043-2X12G00DNT-P

Active

Oupiin

BOARD CONNECTOR, 24 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, SOCKET,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2043-2X12G00DNT-P

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Height	0.28 in
Insulation Height	7.1 mm
Insulation Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

2043 Series

Part	Contact Finish Thickness - Mating	Contact Material	Number of Positions Loaded	Features	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Insulation Height	Insulation Height	Material Flammability Rating	Number of Rows	Current Rating (Amps)	Insulation Material	Contact Shape	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Contact Finish - Mating	Fastening Type	Contact Finish - Post	Connector Type	Number of Positions	Contact Length - Post	Contact Length - Post [x]
Oupiin 2043-2X12G00DNT-P	Flash	Copper Alloy	All	Board Guide Pick and Place	Surface Mount	105 ░C	-55 °C	Female Socket	0.28 in	7.1 mm	UL94 V-0	2	2 A	Plastic	Square	24	0.1 in	2.54 mm	Flash	2.54 mm	0.1 in	Solder	Gold	Push-Pull	Gold	Socket
Oupiin 2043-1X16G00SA	Flash	Copper Alloy	All		Through Hole	105 ░C	-55 °C	Female Socket	0.28 in	7.1 mm	UL94 V-0	1	2 A	Glass Filled Polyester Thermoplastic	Square		0.1 in	2.54 mm	Flash			Solder	Gold	Push-Pull	Gold	Socket	16	3.2 mm	0.126 in
Oupiin 2043-1X10G00SA	Flash	Copper Alloy	All		Through Hole	105 ░C	-55 °C	Female Socket	0.28 in	7.1 mm	UL94 V-0	1	2 A	Glass Filled Polyester Thermoplastic	Square	10	0.1 in	2.54 mm	Flash			Solder	Gold	Push-Pull	Gold	Socket		3.2 mm	0.126 in
Oupiin 2043-2X16G00SA	Flash	Copper Alloy	All		Through Hole	105 ░C	-55 °C	Female Socket	0.28 in	7.1 mm	UL94 V-0	2	2 A	Glass Filled Polyester Thermoplastic	Square		0.1 in	2.54 mm	Flash	2.54 mm	0.1 in	Solder	Gold	Push-Pull	Gold	Socket		3.2 mm	0.126 in
Oupiin 2043-2X03G00SA	Flash	Copper Alloy	All		Through Hole	105 ░C	-55 °C	Female Socket	0.28 in	7.1 mm	UL94 V-0	2	2 A	Glass Filled Polyester Thermoplastic	Square	6	0.1 in	2.54 mm	Flash	2.54 mm	0.1 in	Solder	Gold	Push-Pull	Gold	Socket		3.2 mm	0.126 in
Oupiin 2043-2X05G00SA	Flash	Copper Alloy	All		Through Hole	105 ░C	-55 °C	Female Socket	0.28 in	7.1 mm	UL94 V-0	2	2 A	Glass Filled Polyester Thermoplastic	Square	10	0.1 in	2.54 mm	Flash	2.54 mm	0.1 in	Solder	Gold	Push-Pull	Gold	Socket		3.2 mm	0.126 in
Oupiin 2043-2X25G00SA	Flash	Copper Alloy	All		Through Hole	105 ░C	-55 °C	Female Socket	0.28 in	7.1 mm	UL94 V-0	2	2 A	Glass Filled Polyester Thermoplastic	Square	50	0.1 in	2.54 mm	Flash	2.54 mm	0.1 in	Solder	Gold	Push-Pull	Gold	Socket		3.2 mm	0.126 in
Oupiin 2043-2X06G00SA	Flash	Copper Alloy	All		Through Hole	105 ░C	-55 °C	Female Socket	0.28 in	7.1 mm	UL94 V-0	2	2 A	Glass Filled Polyester Thermoplastic	Square	12	0.1 in	2.54 mm	Flash	2.54 mm	0.1 in	Solder	Gold	Push-Pull	Gold	Socket		3.2 mm	0.126 in
Oupiin 2043-2X04G00SB	Flash	Copper Alloy	All		Through Hole	105 ░C	-55 °C	Female Socket	0.28 in	7.1 mm	UL94 V-0	1	2 A	Glass Filled Polyester Thermoplastic	Square	8	0.1 in	2.54 mm	Flash			Solder	Gold	Push-Pull	Gold	Socket		3.2 mm	0.126 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1	$ 2.30
		500	$ 1.92
		1000	$ 1.53
		1500	$ 1.30
		2000	$ 1.15

Description

General part information

2043 Series

24 Position Socket Connector 0.100" (2.54mm) Surface Mount Gold

Documents

Technical documentation and resources

No documents available
