P270-DS21BR5K

Active

TT Electronics/BI

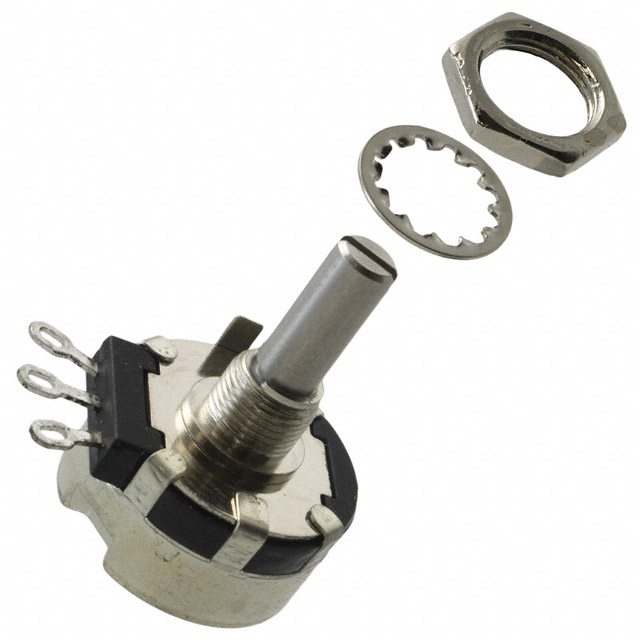

POT 5K OHM 2W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P270-DS21BR5K

Active

TT Electronics/BI

POT 5K OHM 2W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	P270-DS21BR5K

Actuator Diameter	6.35 mm
Actuator Diameter [diameter]	0.25 in
Actuator Length [z]	22.23 mm
Actuator Length [z]	0.875 in
Actuator Type	Slotted
Adjustment Type	User Defined
Built in Switch	False
Bushing Thread	3/8-32
Number of Gangs	1
Number of Turns	1
Power (Watts)	2 W
Resistance (Ohms)	5 kOhms
Resistive Material	Conductive Plastic
Rotation	312 °
Size - Body [diameter]	1.05 in
Size - Body [diameter]	26.67 mm
Size - Body [z]	14.27 mm
Size - Body [z]	0.562 in
Taper	Linear
Termination Style	Solder Lug
Tolerance	10 %

P270 Series

Part	Number of Turns	Actuator Diameter	Actuator Diameter [diameter]	Resistance (Ohms)	Tolerance	Size - Body [diameter]	Size - Body [diameter]	Rotation	Termination Style	Number of Gangs	Resistive Material	Bushing Thread	Actuator Length [z]	Actuator Length [z]	Taper	Power (Watts)	Adjustment Type	Actuator Type	Size - Body [z]	Size - Body [z]	Resistance (Ohms)	Features
TT Electronics/BI P270-DS22R1K	1	6.35 mm	0.25 in	1 kOhms	10 %	26.67 mm	1.05 Dia	312 °	Solder Lug	1	Conductive Plastic	3/8-32	22.23 mm	0.875 in	Linear	2 W	User Defined	Slotted
TT Electronics/BI P270-DS21BR5K	1	6.35 mm	0.25 in	5 kOhms	10 %	26.67 mm	1.05 in	312 °	Solder Lug	1	Conductive Plastic	3/8-32	22.23 mm	0.875 in	Linear	2 W	User Defined	Slotted	14.27 mm	0.562 in
TT Electronics/BI P270-SP22R10K	1	6.35 mm	0.25 in		10 %	26.67 mm	1.05 Dia	312 °	Solder Lug	1	Conductive Plastic	3/8-32	22.23 mm	0.875 in	Linear	2 W	User Defined	Round			10k	Sealed
TT Electronics/BI P270-SS21R5K	1	6.35 mm	0.25 in	5 kOhms	10 %	26.67 mm	1.05 Dia	312 °	Solder Lug	1	Conductive Plastic	3/8-32	22.23 mm	0.875 in	Linear	2 W	User Defined	Slotted				Sealed
TT Electronics/BI P270-DS42R20K	1	6.35 mm	0.25 in	20 kOhms	10 %	26.67 mm	1.05 Dia	312 °	Solder Lug	1	Conductive Plastic	3/8-32	50.8 mm	2 in	Linear	2 W	User Defined	Slotted
TT Electronics/BI P270-DP22R20K	1	6.35 mm	0.25 in	20 kOhms	10 %	26.67 mm	1.05 Dia	312 °	Solder Lug	1	Conductive Plastic	3/8-32	22.23 mm	0.875 in	Linear	2 W	User Defined	Round
TT Electronics/BI P270-SF22R5K	1	6.35 mm	0.25 in	5 kOhms	10 %	26.67 mm	1.05 Dia	312 °	Solder Lug	1	Conductive Plastic	3/8-32	22.23 mm	0.875 in	Linear	2 W	User Defined	Flatted				Sealed
TT Electronics/BI P270-DS22R10K	1	6.35 mm	0.25 in		10 %	26.67 mm	1.05 Dia	312 °	Solder Lug	1	Conductive Plastic	3/8-32	22.23 mm	0.875 in	Linear	2 W	User Defined	Slotted			10k
TT Electronics/BI P270-SS22R10K	1	6.35 mm	0.25 in		10 %	26.67 mm	1.05 Dia	312 °	Solder Lug	1	Conductive Plastic	3/8-32	22.23 mm	0.875 in	Linear	2 W	User Defined	Slotted			10k	Sealed
TT Electronics/BI P270-SP42R2K	1	6.35 mm	0.25 in		10 %	26.67 mm	1.05 Dia	312 °	Solder Lug	1	Conductive Plastic	3/8-32	50.8 mm	2 in	Linear	2 W	User Defined	Round			2k	Sealed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	840	$ 9.80

Description

General part information

P270 Series

5k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Conductive Plastic 2W Solder Lug
