RR01J430RTB
ActiveTE Connectivity Passive Product

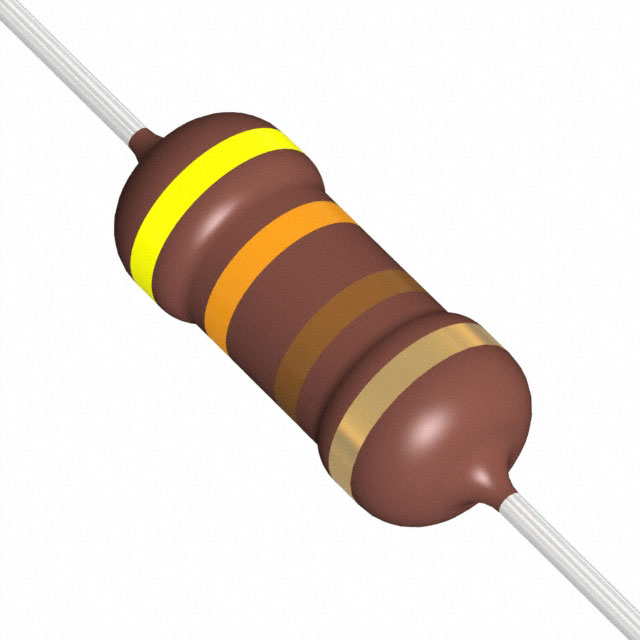

RES 430 OHM 5% 1W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RR01J430RTB
ActiveTE Connectivity Passive Product
RES 430 OHM 5% 1W AXIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RR01J430RTB |
|---|---|
| Composition | Metal Film |
| Features | Pulse Withstanding, Flame Retardant Coating, Safety |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 235 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 1 W |
| Resistance | 430 Ohms |
| Size / Dimension [diameter] | 0.102 in |
| Size / Dimension [diameter] | 2.6 mm |
| Size / Dimension [x] | 0.268 in |
| Size / Dimension [x] | 6.8 mm |
| Supplier Device Package | Axial |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.35 | |
| 10 | $ 0.28 | |||
| 25 | $ 0.21 | |||
| 50 | $ 0.15 | |||
| 100 | $ 0.11 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.05 | |||
| Tape & Box (TB) | 5000 | $ 0.03 | ||
Description
General part information
RR01J Series
430 Ohms ±5% 1W Through Hole Resistor Axial Flame Retardant Coating, Pulse Withstanding, Safety Metal Film
